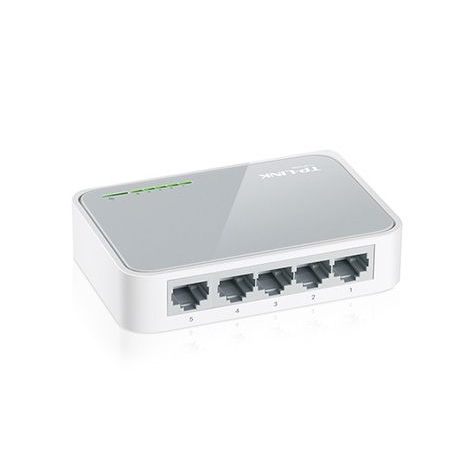

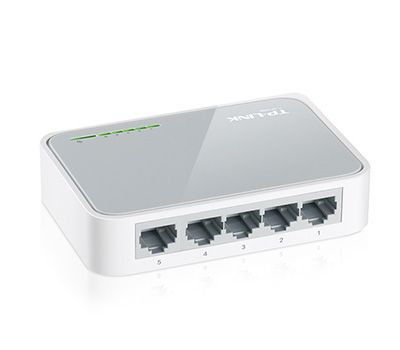

TP-Link TL-SF1005D 5 Port Switch 10/100M

-4%
£8.00
(£9.60 inc VAT)
List price: £10.00
Short description:
5 x RJ45 Ports
6715
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info
TL-SF1005D 5-port 10/100Mbps Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

The TP-LINK TL-SF1005D 5-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.

  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
  • Supports MAC address auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity
  • Plastic case, desktop or wall-mounting design
  • External Power Adapter supply







Standards and Protocols
 IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
 Wire-speed Performance
 MAC Address Auto-Learning and Auto-aging
 IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
 1Gbps
MAC Address Table
 1k
Forwarding Rate
 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
Transmission Method
 Store-and-Forward
Ports
 5 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
LED Indicators
 Power, Link/Act (1, 2, 3, 4, 5)
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 5.5*3.4*1.1 in. (140*87*27.5 mm)
Environment
 Operating Temperature: 0℃~40℃ (32℉~104℉)
 Storage Temperature: -40℃~70℃ (-40℉~158℉)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power
 External Power Adapter

Ethernet Speed:
100Mbps Fast
Number of Ports:
5
PoE:
GTIN:
6935360000000
MPN:
TL-SF1005D

New features

Manufacturer:
TP-Link
+ −
