Faster, more stable Wi-Fi connections
Powerline Transmission
High Speed Wi-Fi
- Powerline Wi-Fi Range Extender
- Network signal is transmitted through home wiring with little interference resulting in stable, speedy Wi-Fi transmissions.
Wi-Fi Transmission
Degraded Wi-Fi Speed
- Wi-Fi Only Range Extenders
- Simply takes an already weak Wi-Fi signal and reproduce it, signal quality can be degraded
HARDWARE FEATURES Standards and Protocols HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n Interface 2*10/100Mbps Ethernet Port Plug Type EU, UK, US, AR Button Pair, Reset, Wi-Fi/Wi-Fi Clone LED Indicator PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone Dimensions ( W x D x H ) 3.7 x 2.1 x 1.6 in. (94×54×40mm) Power Consumption Maximum: 7.608W (220V/50Hz)
Typical: 7.216W (220V/50Hz)
Standby: 4.610W (220V/50Hz)Range 300 Meters over electrical circuit WIRELESS FEATURES Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)Reception Sensitivity 270M: -68dBm@10% PER 130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER 1M: -90dBm@8% PERWireless Security 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK Advanced Functions Enable/DisableWireless Radio,WMM, Wireless Statistics Advanced Functions Enable/DisableWireless Radio,WMM, Wireless Statistics Transmission Power CE:<20dBm(2.4GHz) FCC:<30dBm SOFTWARE FEATURES Modulation Technology OFDM (PLC) Encryption Powerline Security: 128-bit AES

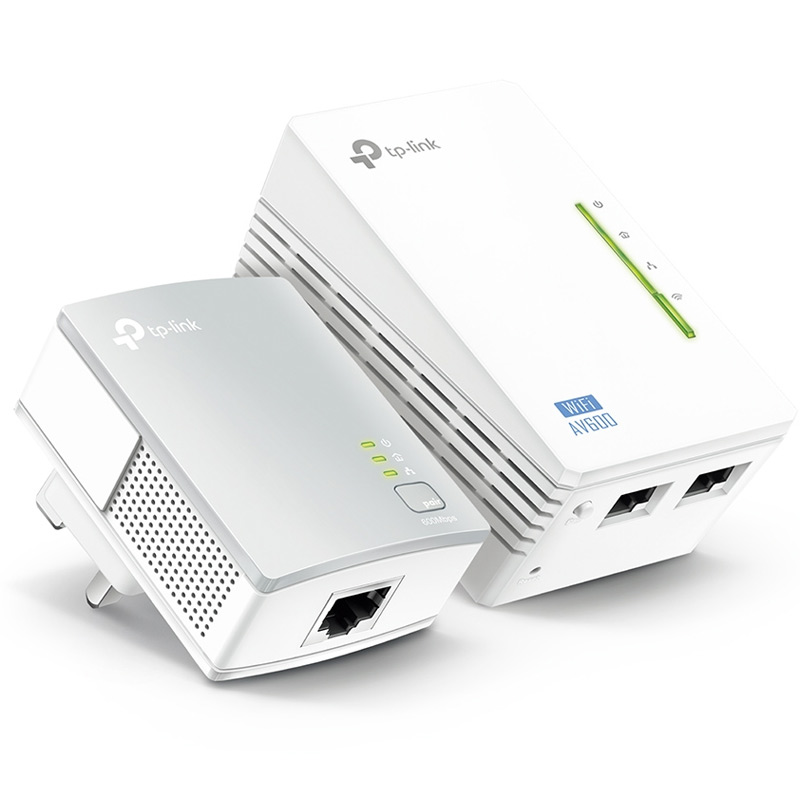

Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK EncryptionOTHERS Certification CE, FCC, RoHS Package Contents Powerline Ethernet Adapter TL-WPA4220 & TL-PA4010
6.5 ft. (2 m) Ethernet cable (RJ45) Resource CD
Quick Installation GuideSystem Requirements Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux Environment Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
