WIRELESS | |
---|---|
Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) |
WiFi Range | 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
WiFi Capacity | Medium Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation |
Working Modes | Router Mode Access Point Mode |
SECURITY | |
---|---|
Network Security | SPI Firewall Access Control IP and MAC Binding |
Guest Network | 1× 2.4 GHz Guest Network 1× 5 GHz Guest Network |
WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
HARDWARE | |
---|---|
Processor | 1.2 GHz CPU |

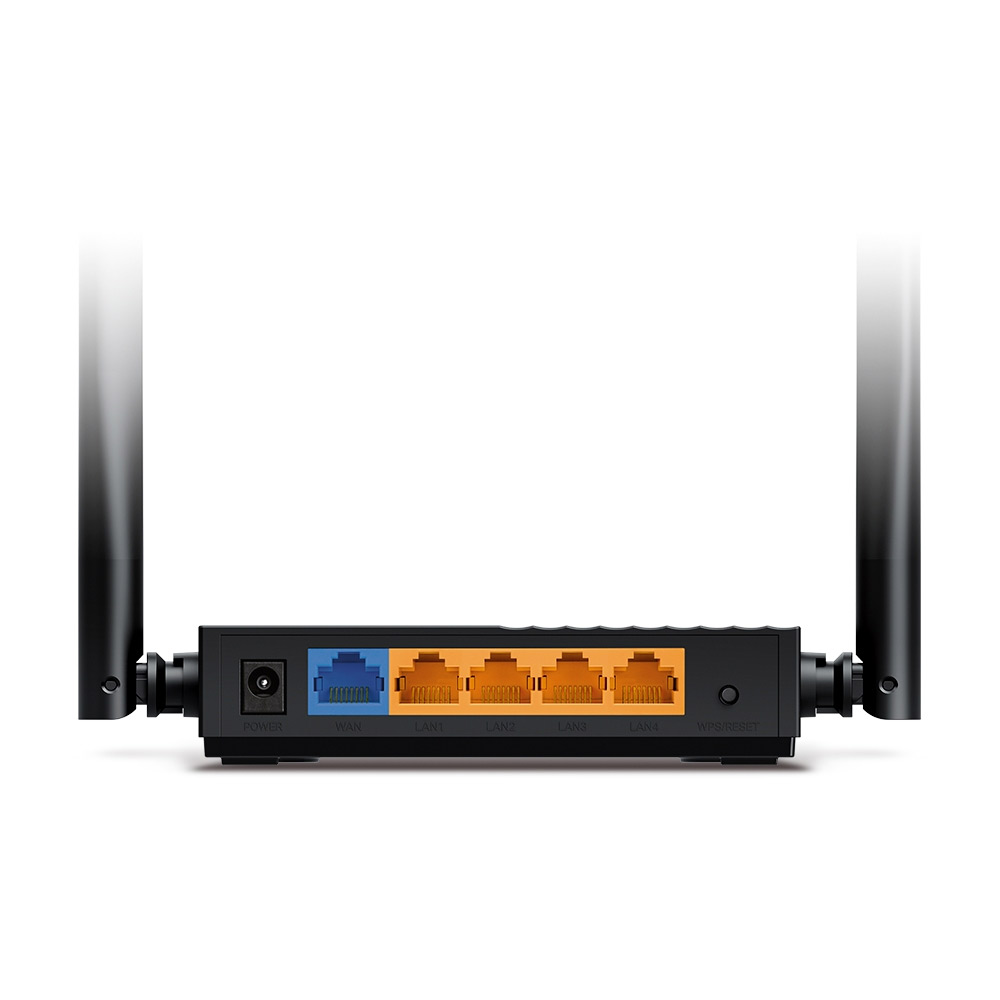

Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
Buttons | WPS/Reset Button |
Power | 12V = 1A |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer C64 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More> |
Parental Controls | URL Filtering Time Controls |
WAN Types | Dynamic IP Static IP PPPoE(Dual Access) PPTP(Dual Access) L2TP(Dual Access) |
Quality of Service | QoS by Device |
Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering UPnP DMZ |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Server DHCP Client List Address Reservation |
DDNS | TP-Link NO-IP DynDNS |
Management | Tether App Webpage Check Web Emulator> |
OTHER | |
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5 GHz) |
WiFi Reception Sensitivity | 5 GHz: 11a 6Mbps:-95dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63dBm 2.4 GHz: 11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT20 MCS7:-77dBm 11n HT40 MCS7:-74dBm 11ac VHT20 MCS8:-73dBm 11ac VHT40 MCS9:-68dBm |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm) |
Package Contents | Wireless Router Archer C64 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
