Easy Setup and Management
Set up the Archer VR2100 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
HARDWARE FEATURES | |
---|---|

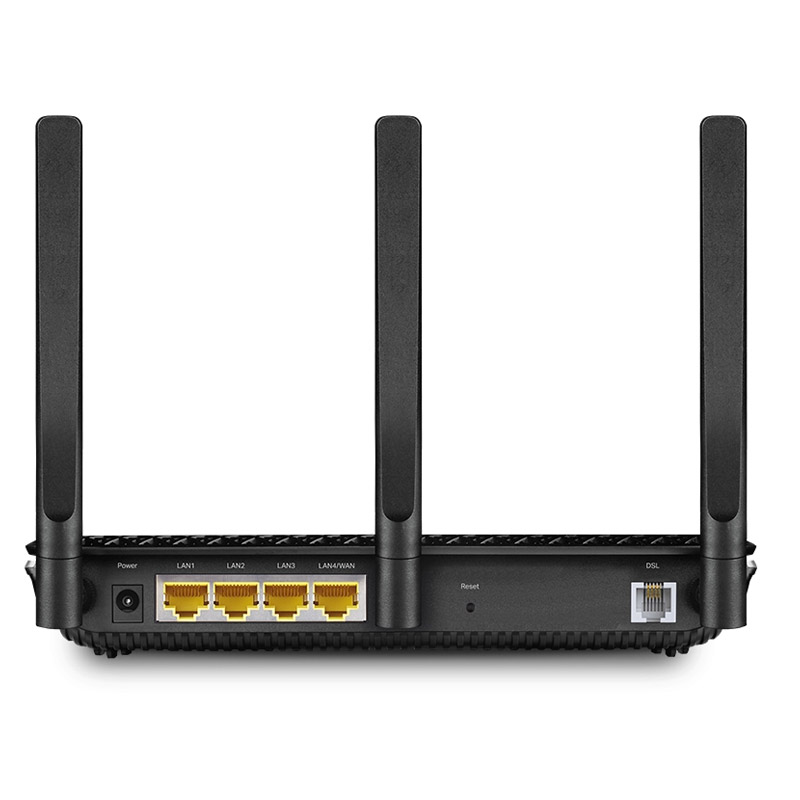

Ports | 3 Gigabit LAN Ports, 1 Gigabit LAN/WAN Port, 1 RJ11 Port, 1 USB Port |
Button | WPS Button, Reset Button, Power On/Off Button, Wi-Fi Button, LED On/Off Button |
External Power Supply | 12V/1.5A |
IEEE Standards | IEEE 802.3, IEEE 802.3u, 802.3ab |
VDSL2 Standards | ITU G.993.2, Up to 35b profile (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), |
ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis), |
ADSL2+ Standards | ITU-T G.992.5 |
Dimensions ( W x D x H ) | 8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm) |
Antenna Type | 3 External Dual Band Antennas + 1 Internal 5 GHz Antenna |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 1733 Mbps on 5 GHz, 300Mbps on 2.4 GHz |
Transmit Power | <20dBm (2.4 GHz), <23dBm (5 GHz) |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
Wireless Schedule | Support 2.4 GHz and 5 GHz Wireless Schedule |
SOFTWARE FEATURES | |
---|---|
Security | NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
Operating Modes | VDSL/ADSL Modem Router, 3G/4G Router, Wireless Router |
Management | Web-Based Configuration (HTTP / HTTPS ), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update |
DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
Dynamic DNS | DynDns, NO-IP, TP-Link |
VPN | OpenVPN, PPTP VPN, IPSec VPN |
Protocols | Supports IPv4 and IPv6 |
ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
Advanced Features | Parental Controls, Network Address Translation (NAT), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
Guest Network | 2.4 GHz Guest Network, 5 GHz Guest Network |
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
OTHERS | |
---|---|
Certification | CE, RCM, RoHS |
Package Contents | DSL Modem Router External Splitter RJ11 DSL Cable RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
