VDSL with 1.9Gbps Wi-Fi
The Ultimate Buffer Breaker
AC 1900 Wireless Gigabit VDSL/ADSL
Modem Router
• Shop Open Mon-Sat 10am-5.30pm
- Versatile Connectivity – Ethernet WAN and USB ports, the VR900 is fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standard, fibre/cable access and 3G/4G USB dongles
- Superfast Wi-Fi – 600Mbps on 2.4GHz + 1300Mbps on 5GHz
- Maximum Range – 3 dual band detachable antennas provide maximum Omni-directional wireless coverage and reliability
- 1GHz Dual-core Processor – Ensures no interruption while processing multiple wired or wireless tasks simultaneously
- Beamforming Technology – Improves wireless range and performance on both 2.4GHz and 5GHz band
Hop on the Internet Fast Lane
with 1.9Gbps Wi-Fi
The Archer VR900 makes full use of its dual band Wi-Fi abilities, reaching speeds of up to 600Mbps on the 2.4GHz band and 1300Mbps on the 5GHz band. Enjoy a total speed of up to 1.9Gbps to eliminate buffering from your HD streams and lag from online games.
The two wireless bands are separated in two dedicated Wi-Fi networks, supporting more devices while reducing signal interference, to deliver a stable connection for every wireless device in your home.
- 1300Mbps
- 5GHz
- 600Mbps
- 2.4GHz
Breaking VDSL Broadband Speeds
Replace both your last-gen modem and Wi-Fi router with The Archer VR900, a two-in one advanced machine. Built with advanced VDSL2 technology, it delivers broadband speeds of up to 100Mbps, almost five times faster than the previous ADSL2+. In case you don’t have VDSL2 yet, an integrated DSL port supports all standard DSL connections, including VDSL2, ADSL2+, ADSL2, ADSL.
1Mbps
24Mbps
100Mbps
ADSL2+
VDSL2
Diverse Connections
The Archer VR900 is built to connect you to the internet, no matter your situation. The Ethernet WAN port supports wired connections to cable and fibre modems, letting you take full charge of its wireless capabilities as a router. In case your internet goes down, attach a 3G/4G adapter to two USB 3.0 ports to serve as a backup option so you can get back online in no time.
- 3G/4G Dongle
- USB Ports
- LAN/WAN Port
- Ethernet Cable
- Fibre/Cable Modem
- 3G/4G Dongle Connection
- Ethernet WAN Connection
Better Coverage
and a More Stable Connection
With three external antennas, the Archer VR900 provides stable coverage throughout your entire home or office. Advanced beamforming technology automatically locates wireless devices and forms targeted, highly efficient wireless connections to them, even as they move from room to room.
- Beamforming
- Other Router without Beamforming
One Powerful Processor
The 1GHz dual-core Broadcom processor with 2 co-processors boost data transfer speeds and ensures that performance is never compromised, even while simultaneously processing multiple wireless and wired tasks. This processor is equipped to handle your busy network while you enjoy a hassle-free, connected life.
Lightning-Fast Wired Connection

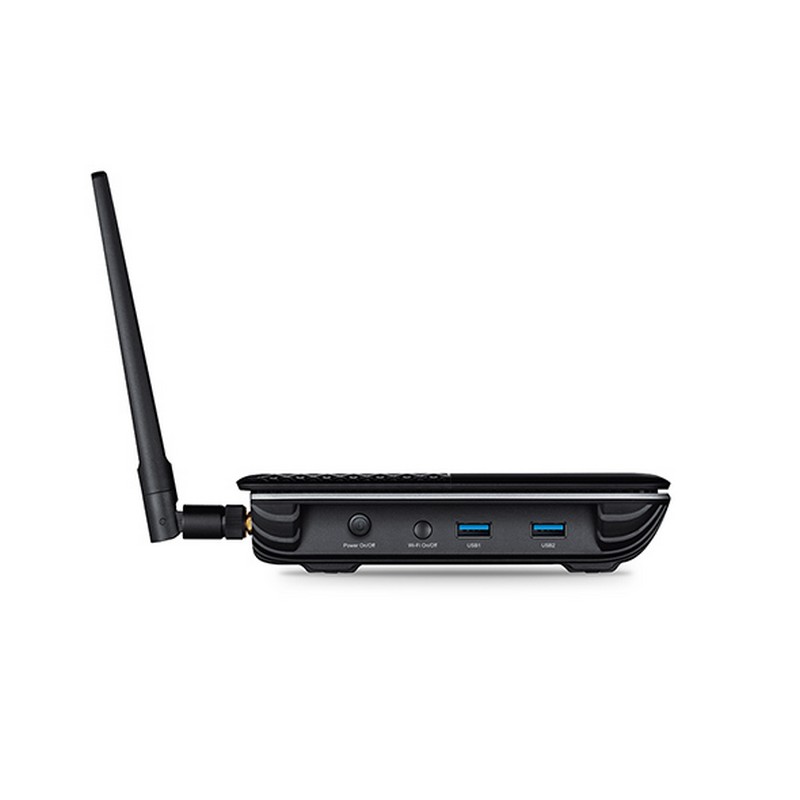

The Archer VR900's dual USB 3.0 ports run 10x faster than USB 2.0 for data transfer at lightning speed. Connect external drives and easily share files, photos, music and video across your network.
To help your wired devices achieve peak performance, the Archer VR900 is also equipped with four Gigabit Ethernet ports that can operate 10x faster than standard Ethernet.
An Appealing Aesthetic
The Archer VR900 is designed as a welcome addition your modern home. A glossy black finish of makes it fit the decor of any bedroom or common space. Silver accents provide an aura of elegance, making the Archer VR900 easy to display atop a table or mounted on the wall. For added convenience, you can easily disable the LED indicators to prevent distractions at night.
Easy Setup and Use
An intuitive, multilingual web interface (currently available in English, German, French, Italian, Polish and Turkish) makes PC setup of the Archer VR900 easier than ever before. We also provide a new mobile interface for your convenience. Put control at your fingertips with Tether, an app that lets you manage network settings - including parental controls and media sharing - from any Android or iOS device.
Learn more about Tether App >
- Guest
Network - Provide visitors with Wi-Fi access separate from your main network
- Parental
Controls - Manage when and how connected devices can access the Internet
- Advanced
Security - WPA-WPA2 encryption actively defends against security threats
| HARDWARE FEATURES | |
|---|---|

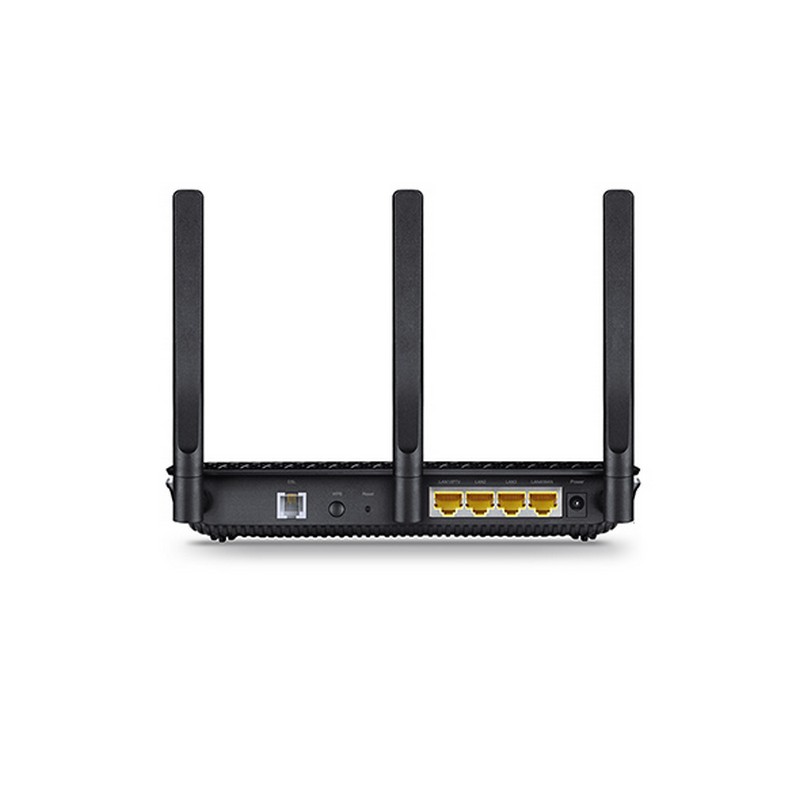

| Interface | 1 10/100/1000Mbps RJ45 WAN/LAN Port 3 10/100/1000Mbps RJ45 LAN Ports 1 RJ11 Port 2 USB 3.0 Port |
| Button | WPS Button, Reset Button, LED On/Off Button, Wireless On/Off Button, Power On/Off Button |
| External Power Supply | 12V/2.5A |
| IEEE Standards | IEEE 802.3, IEEE 802.3u, 802.3ab |
| VDSL2 Standards | ITU-T G.993.2, Up to 17a profile (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP） |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( W x D x H ) | 216 x 164 x 36.8mm |
| Antenna Type | 3 external detachable dual band antennas (RP-SMA) |
| Antenna Gain | 3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Wireless Speeds | 1300Mbps at 5GHz, 600Mbps at 2.4GHz |
| Frequency | 2.4GHz and 5GHz (Supports DFS) |
| Transmit Power | <20dBm(EIRP) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Support 2.4GHz and 5GHz Wireless Schedule |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | ATM QoS, Traf c Control(IP QoS) |
| Security | NAT Firewall, Access Control, MAC / IP / URL Filtering, IP and MAC Address Binding |
| Operating Modes | VDSL/ADSL Modem Router, Wireless Router, 3G/4G Router |
| Management | Web Based Con guration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec Passthrough |
| Protocols | Supports IPv4 and IPv6 |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
| Advanced Functions | Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server, 3G/4G Modem |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| OTHERS | |
|---|---|
| Certification | CE, RCM, RoHS |
| Package Contents | AC1900 Wireless Dual Band Gigabit VDSL/ADSL Modem Router Archer VR900 External Splitter RJ11 DSL Cable RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an Internet Service Provider (for Internet access) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Ethernet Speed:
1000Mbps Gigabit
Router Type:
ADSL2 / VDSL2 (Fibre)
Wifi:
2.4 / 5Ghz Wireless AC
GTIN:
06935364097387
MPN:
ARCHER VR900 V2
New features
Manufacturer:
TP-Link
