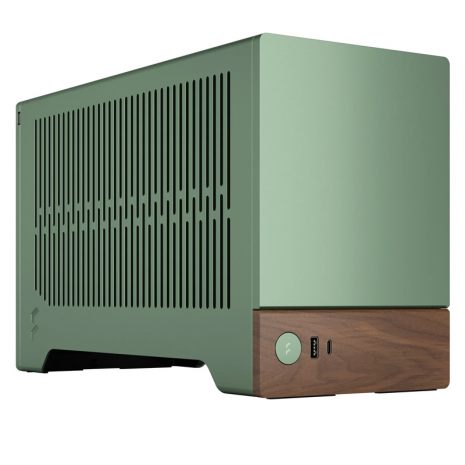

Fractal Design Terra Jade Mini-ITX Case with PCI-E 4.0 Riser FD-C-TER1N-03

£149.99
(£179.99 inc VAT)
Short description:

Mini-ATX Case, No Power Supply

Grill on Side

0040
1
+ −
Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

Despite its modest 10.4L, the Terra can easily accommodate a fullsize current GPU and SFX-L PSU thanks to a sliding wall design that adapts to your motherboard and GPU needs

This is a case that fuses Scandinavian design elements and a remarkably flexible interior to form a uniquely versatile SFF case and lend an air of luxury to any build.
  • Sandwich type SFF-case
  • Motherboard bracket can be slid sideways to make room where it is needed the most
  • Anodized aluminum exterior
  • Front and back panel made by 8 mm CNCd anodized aluminum
  • Front panel made of walnut
  • PCIe 4.0 Riser cable included
  • Removable top panel and removable falcon hinged side panels for easy access
  • Only 10,4L (non-protruding parts) yet accommodates up to a 322 mm long GPU

Specification

Dimensions W D H
153mm 343mm 218mm
Weight 3.1kg
Fan Support Bottom - 1 x 120mm Fan Mount
Fans Incl. None
Radiator Support Side - Supports 1 x 120mm Radiator if no SSDs fitted and graphics card less than 200mm length
5¼" Bays -
3½" Bays -
2½" Bays 2 x 2.5" SSD Mounts
Motherboard Mini-ITX
Power Supply SFX or SFX-L
Material Anodized aluminium exterior
Front and back: 8mm CNCd anodized aluminium
Front panel: walnut
CPU Cooler Configured for Max CPU-Cooler:
CPU cooler max height: 77 mm
Configured for Max GPU:
CPU cooler max height: 48 mm
Window No
Graphics Support 322mm Max Length
Note, there's a few criteria for GPU fitting - if in doubt, please drop us an email to check suitability
Configured for Max CPU-Cooler:
GPU max width 1: 43 mm (GPU height lower than 131mm)
GPU max width 2: 33 mm (GPU height 131-145mm)
GPU max height: 131 mm
Configured for Max GPU:
GPU max width 1: 72 mm (GPU height lower than 131mm)
GPU max width 2: 62 mm (GPU height 131-145mm)
GPU max height: 145 mm
Vertical Graphics Yes, Includes PCI-E 4.0 Riser
Expansion Slots 3 Expansion Slots
Hubs -
Connectors 1 x USB 3.1 Gen 2 Type-C
1 x USB 3.0

Find the full list of features at www.fractal-design.com

Click here for Installation Manual



Elegantly crafted
  • Add natural materials to your setup with a front-facing panel cut from FSC-certified solid walnut
  • Enjoy a sleek anodized aluminum exterior including an 8 mm-thick aluminum front
  • Make the most of natural airflow through the ventilated top, side and bottom panels

Engineered for SFF gaming
  • Experience powerful, uncluttered gaming, with the ability to install a GPU up to 322 mm long in a space-saving 10.4 L case
  • Get a head start on your build with the included PCIe 4.0 riser cable
  • Store up to two SSDs in the dedicated 2.5” drive mounts

Easily accessible

Slide open the top with an integrated tab and lift open the fully removable side panels for easy access to your components

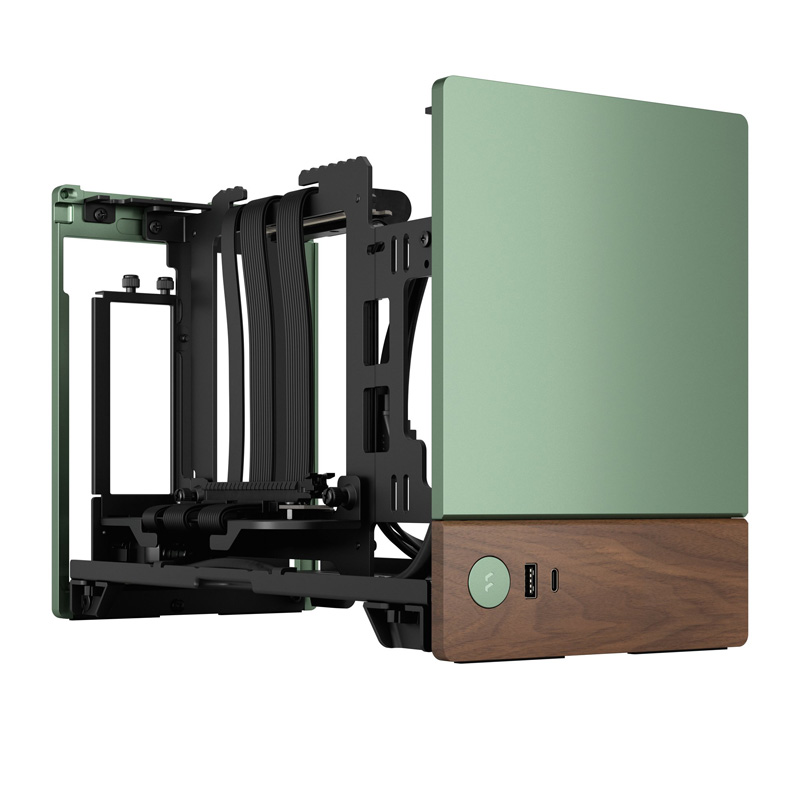

Adjustable motherboard plate

Find your build’s ideal balance with 30 mm of internal flexibility provided by a stepless, movable central wall

Slide to strike the best ratio for your build, adapting the space for CPU cooling on one side and graphics card width on the other

Front-facing I/O

The solid walnut front panel features an aluminum power button and two USB ports for connecting devices, including one USB Type-C 20Gbps

Natural material

Enjoy a naturally unique finish, with an individual front panel cut from solid walnut.

Highly transportable

Features the ability to lock the top and side panels for safer transportation of your build
Colour:
Green
Width:
153mm
Depth / Length:
343mm
Height:
218mm
GTIN:
7340172704003
MPN:
FD-C-TER1N-03

New features

Manufacturer:
Fractal Design

Cases

Case Form Factor:
Mini ITX
Graphics Card Support:
322mm
Case Window:
Mesh Panels
Case Lighting:
None
Case Slim Optical Bay:
Case 5"1/4 Bays:
0
Case 3"1/2 Bays:
0
Case Dedicated 2"1/2 Bays:
2
+ −
