- Three sides of column-less glass panels provide the most seamless view of components
- Modular and toolless design panels and fan brackets ensure a friendly installation process
- Supports a up to 2 × 360mm radiators + 1 × 240mm radiator and a maximum of 8 fans (11 fans with push-pull setup)
- Features 27mm tall feet and hollowed bottom design to increase cold air intake.
- Dual-chamber layout with cable management compartment and cable holders
- Number of PSU supported : 1
- Brushed Aluminum
- 3mm Tinted Top Tempered Glass
- Inner Corner Silkscreen
- 4mm Tinted Side and Front Tempered Glass
- Black Coated Mesh Panel
DOWNLOAD
| Dimensions | W | D | H |
| 304mm | 480mm | 464.5mm | |
| Fans Included: |
None | ||
| Fan Support: |
Side: 120mm × 3 or 140mm × 2 Bottom: 120mm × 3 or 140mm × 3 Rear: 120mm × 1 (high mode) or 2 (low mode) |
||
| Radiator Support (Forfeits fan slots) |
Side: 360 / 240 / 280mm Bottom: 360 / 240 / 280mm Rear: 240 (low mode)/ 120mm (high mode) |
||
| Drive Bays | Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 2 X 3.5′′ HDD or 2.5′′ SSD |
||
| Motherboard | E-ATX (width: under 280mm)/ATX /M-ATX/ITX | ||
| Power Supply | ATX, up to 220mm length | ||
| Material | Steel 4.0mm Tempered Glass 3.0mm Tempered Glass Aluminum |
||
| CPU Cooler | Max Height 167mm | ||
| Window | Tempered Glass Side, Front, Top | ||
| Graphics Support | Max 455mm Length | ||
| Vertical Graphics | Not included, but vertical mount kit available separately | ||
| Expansion Slots | 7 | ||
| Connectors | USB 3.0 Type C x 1 USB 3.0 x 2 Mic / Audio Combined |
||
3 SIDES OF GLASS
COLUMNLESS DESIGN
ENHANCED MODULARITY
3 SPACES FOR RADIATORS
5 DRIVES CAPACITY
CABLE MANAGEMENT FRIENDLY
IN COLLABORATION WITH PCMR
LIAN LI joins forces with PC Master Race (PCMR) to present the O11 Vision. By combining LIAN LI’s expertise in crafting high-quality, feature-rich cases with PCMR’s community of PC enthusiasts, we created a product that builders truly desire. The result is a dual-chamber case with three sides of borderless tempered glass panels that give the clearest view of the system. The O11 Vision embodies the spirit of LIAN LI and PCMR, providing PC enthusiasts the opportunity to create their finest masterpiece.
UNOBSTRUCTED HARDWARE SHOWCASE

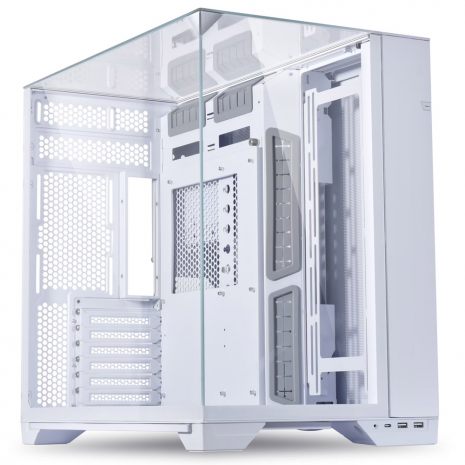

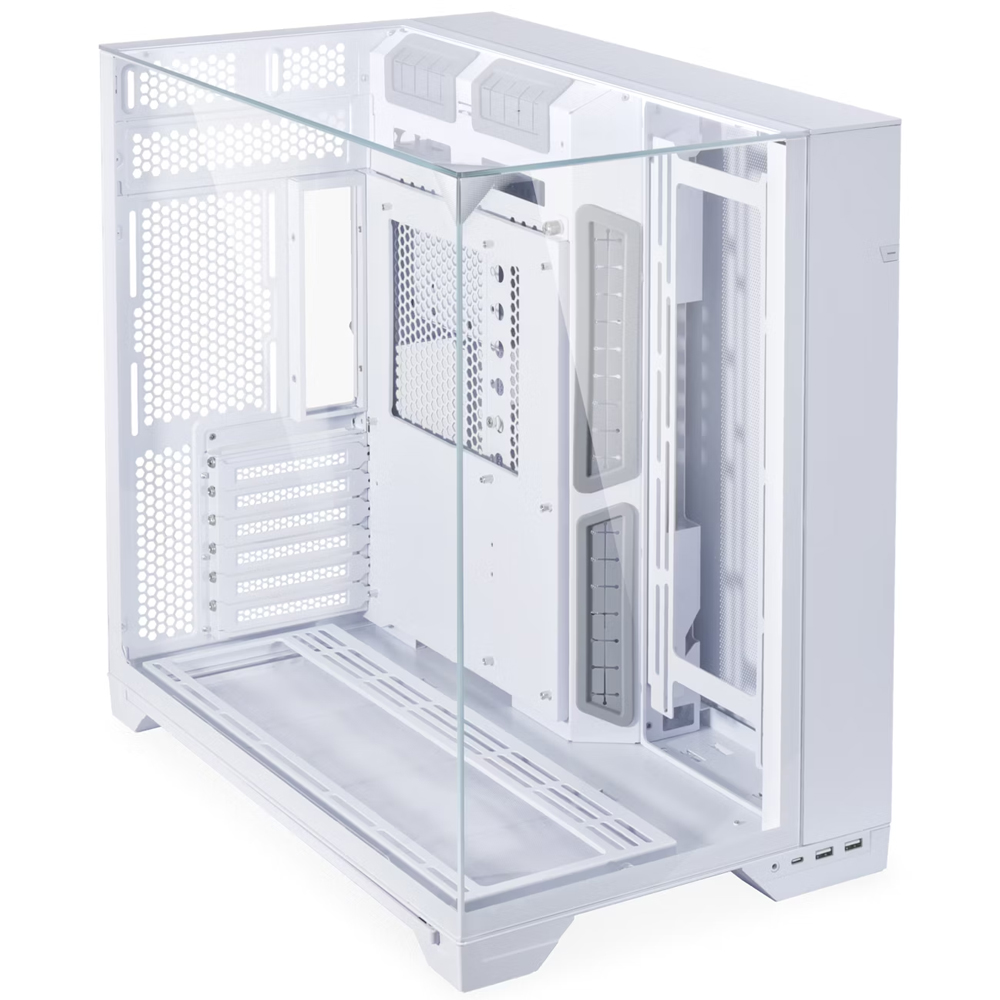

Display your style and showcase the power of your PC with the O11 Vision, a chassis that features three sides of tempered glass panels without any columns or pillars for the ultimate unobstructed view of the system.
BALANCE BETWEEN COOL AND CLEAR
The O11 Vision not only boasts a striking appearance but also doesn’t compromise on cooling capabilities thanks to its 27mm tall feet and hollowed out bottom fan bracket with 13mm elevation, ensuring ample airflow intake within the chassis.Offers support for a maximum of 2 × 360 + 1 × 240 radiators, ensuring efficient thermal control.
SEAMLESS BUILD PROCESS
Every bracket and panels are designed for modular and toolless removal, simplifying the build process and allowing for customizable configuration.
Note: The front glass panel is also removable but we do not suggest doing so during the normal installation process.
SOLID STRUCTURE
Strong structural support is designed with robust keys rated for 35kg of force, ensuring unwavering stability for all three side glass panels
TWO-WAYS REVERSIBLE SIDE FAN BRACKET
Inner Scenario
For 75mm space in the main chamber
Outer Scenario
Optimized for a push-pull configuration
REMOVABLE BOTTOM FAN BRACKET AND DUST FILTER
Able to remove the fan bracket to install the radiator or fan with ease and clean the dust filter.
ADJUSTABLE MOTHERBOARD TRAY
Mount the motherboard, CPU pump, and graphics card outside the chassis first to make the installation process easier.
