| Dimensions | W | D | H | |
| 260mm | 480mm | 550mm | ||
| Weight | 13.8kg | |||
| Front Fan | 2 x 140mm Fans Included (Supports 2 x 120 / 140mm Fans) |
|||
| Rear Fan | 1 x 140mm Fan Included Supports 2 x 120 / 140mm Fans |
|||
| Top Fan | Supports 3 x 120mm / or 2 x 140mm Fans |
|||
| Bottom Fan | Supports 3 x 120mm / or 2 x 140mm Fans |
|||
| Interior Fan | Supports 2 x 120mm HDD Bay Fans | |||
| Side Fan | Supports 2 x 120mm Fans | |||
| 5"1/4 Bays | 3 | |||
| 3"1/2 Bays | - | 6 Internal 3.5"/2.5" + 2 Internal 2.5" |
||
| Motherboard | MicroATX, Mini ITX | |||
| Power Suppply | ATX, not included | |||
| Front Panel | Plastic - Aluminium Effect Faceplate | |||
| Chassis | Steel | |||
| Side Window | Yes | |||
| Port Extensions | USB 3.0 | USB 2.0 | Audio | eSATA |
| 2 Internal | 0 | 2 | 0 | |
| Max Graphics | 289mm 410mm (without HDD Cage) |
|||
| Max Cooler | 215mm Height | |||
| Expansion Slots | 5 | |||

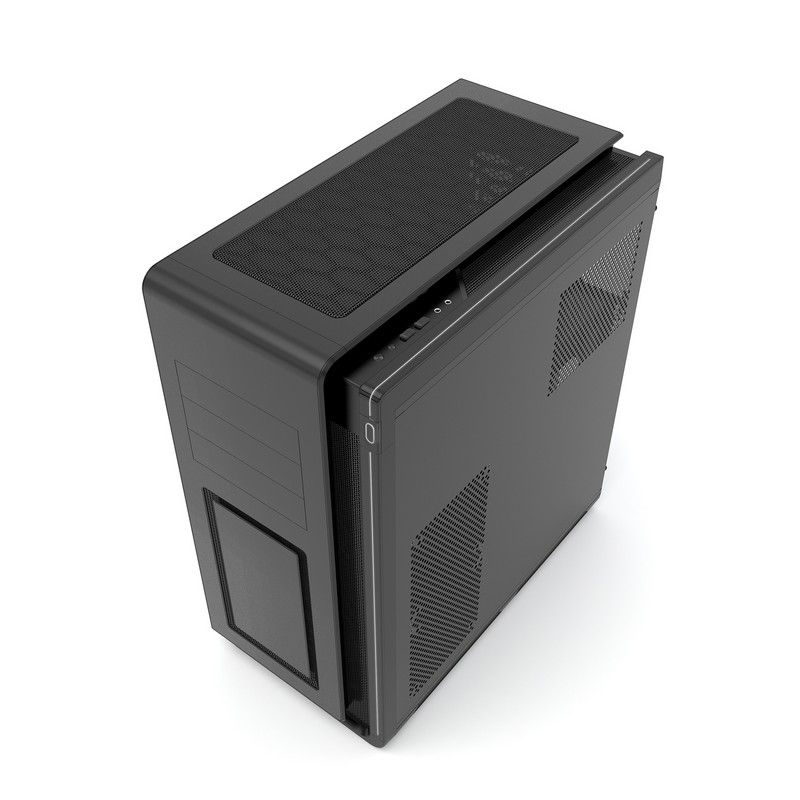

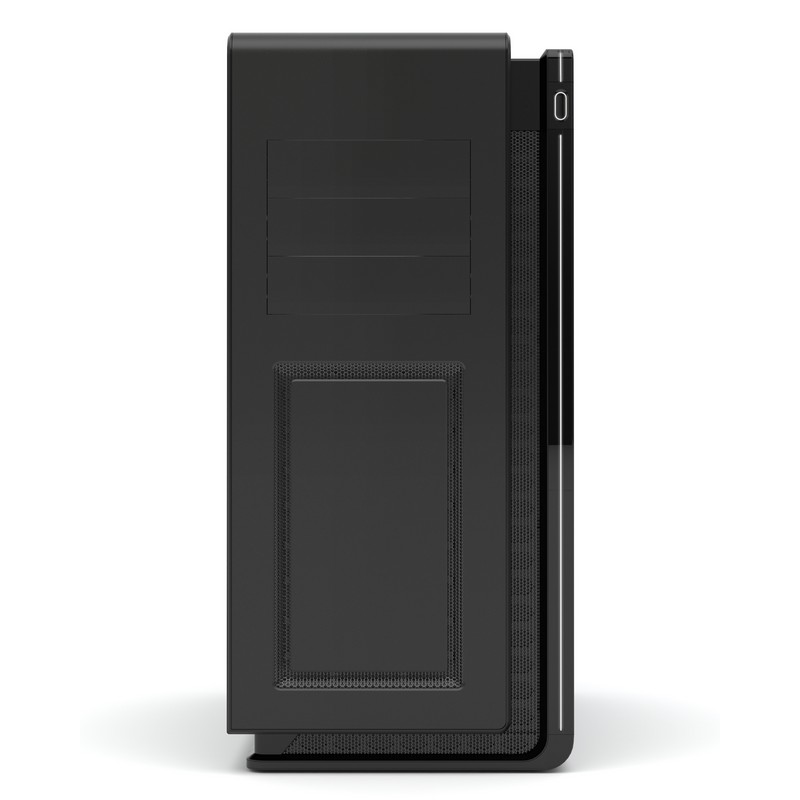

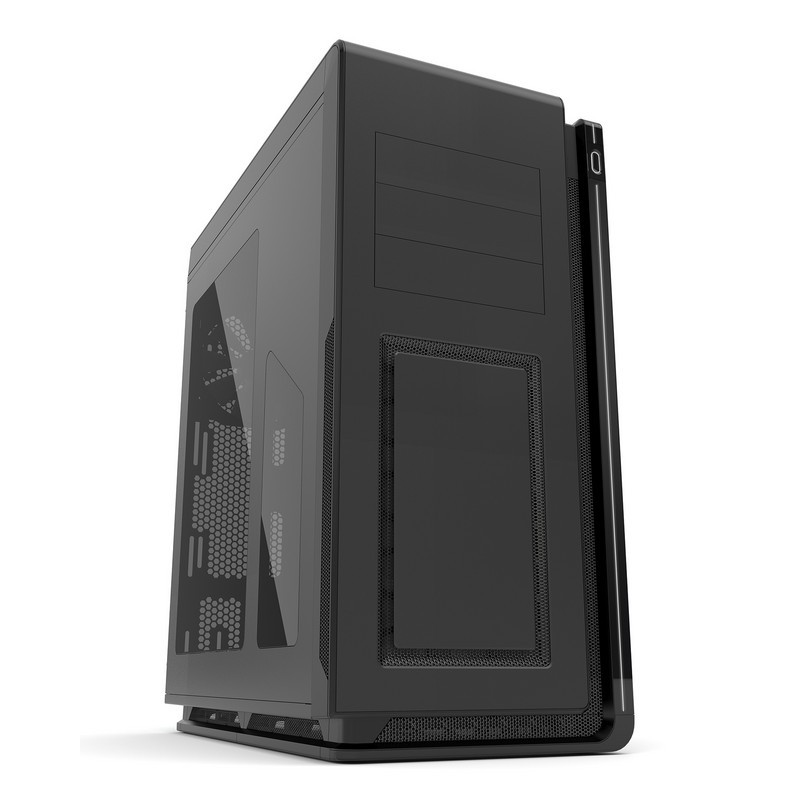

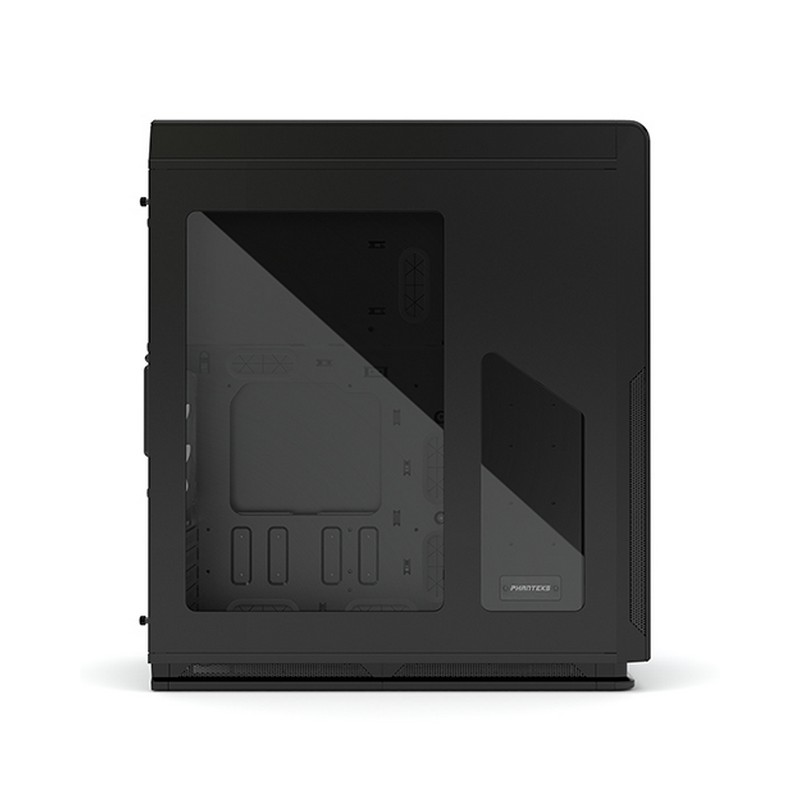

The MINI XL introduces a new form factor, super micro ATX. With its unique power supply location, the Mini XL case has been redesigned with optimal cooling in mind. Resembling the Enthoo Primo, it offers extensive water-cooling possibilities and supports the thickest radiators in the market (80mm). The case brings modularity to a new level. Almost every single panel or bracket can be removed or relocated to serve different purposes. For the ones who desire even more, the Mini XL leaves options for additional upgrades. Pherhaps the most interesting one is the possibility to transform the MINI XL into a dual motherboard system.
Features:
Enthoo Mini XL includes 2 x 140mm fan in front and 1 x 140mm fan in the rear. Ability to upgrade to additional fans is possible. All fans included are Phanteks' new redesigned and better performing SP series fans.
Appearance:
-Sandblasted aluminum faceplates with matte finish
-Multi-color LED light strips
-Stealth interior design
Cooling:
- Extreme cooling capacity
- Support for up to 14x 120mm / 8x 140mm
- Comes with 3 Phanteks premium fans
- PWM fan hub plus 2x y-splitters allow for 8 fan connections* (11 fans max with additional y-splitters sold seperately)
- Extensive water cooling support. Provides up to 5 different installation areas for slim and thick radiators varying from single to triple (120mm and 140mm form factors). Clearance for push-pull fan configurations.
Functionality:
- Dual removable harddrive cages
- 2x removable Drop-N-Lock SSD brackets
- Fully equipped with dustfilters (1x top, 1x front, 2x bottom)
- Removable top panel for easy fan installation and dust filter cleaning
- Compartment for fan installation in top panel
- Clean cable management using Phanteks' preinstalled Hoop-N-Loop cable ties
- Mod friendly structure uses screws NOT rivets
- 10 color abient lighting controller
- 2x USB 3.0, microphone, 3.5mm audio jack
|
120mm radiator
|
140mm radiator
|
||
|
|
|||
|
Front
|
Up to 240
|
140 | |
|
Top
|
Up to 360
|
Up to 280 | |
|
Rear
|
Up to 240
|
Up to 280 | |
|
Bottom
|
Up to 360
|
Up to 280 | |
|
Side
|
Up to 240
|
- | |
