Powered by Radeon RX 7700 XT
Integrated with 12GB GDDR6 192-bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS

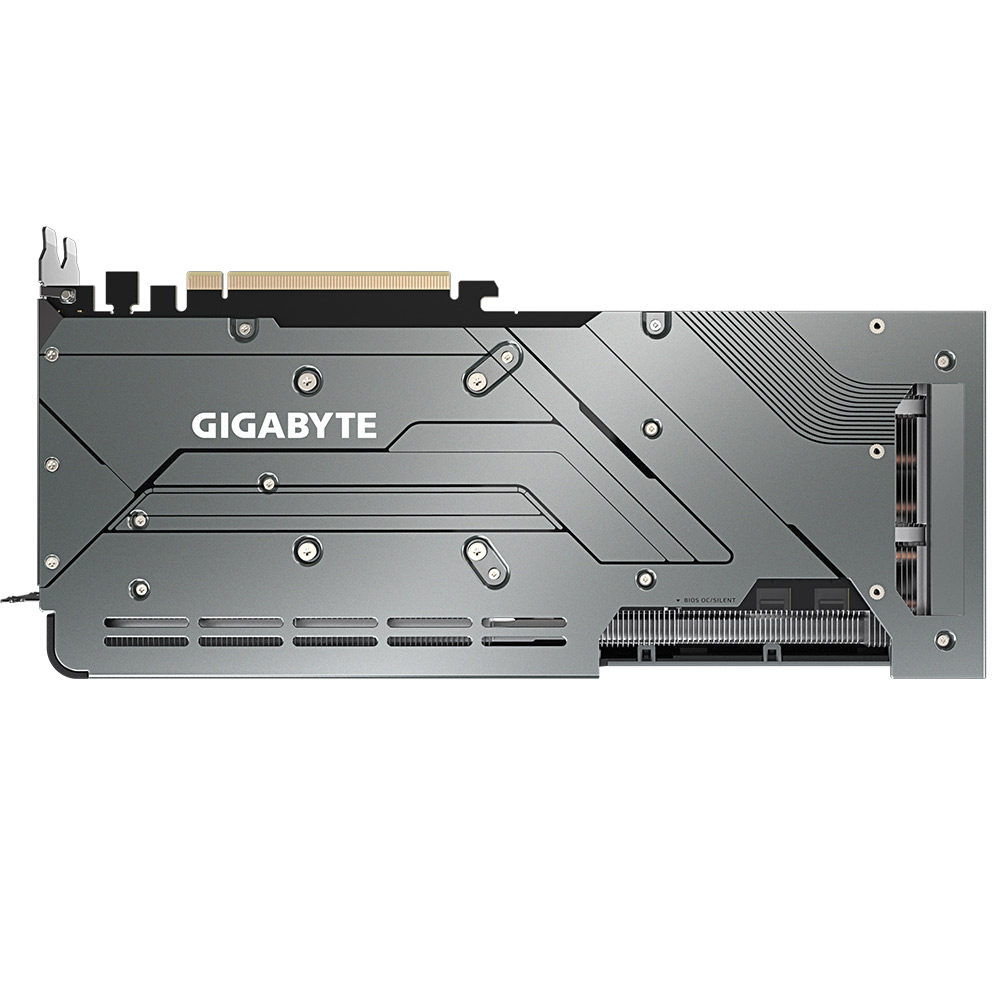

Protection metal back plate
CORE CLOCK
Boost Clock : up to 2599 MHz (Reference card: 2544 MHz)
Game Clock : up to 2276 MHz (Reference card: 2171 MHz)
| Interface |
PCI Express 16x 4.0 |
| Chipset | ATI Radeon RX 7700 XT |
| Memory | 12GB GDDR6 |
| Core Clock | Boost Clock: Up to 2599 MHz Game Clock: 2276 MHz |
| Memory Clock | 18Gbps |
| Stream Processors | 3456 |
| VGA (Max Res) | Not Supported |
| USB C (Max Res) | - |

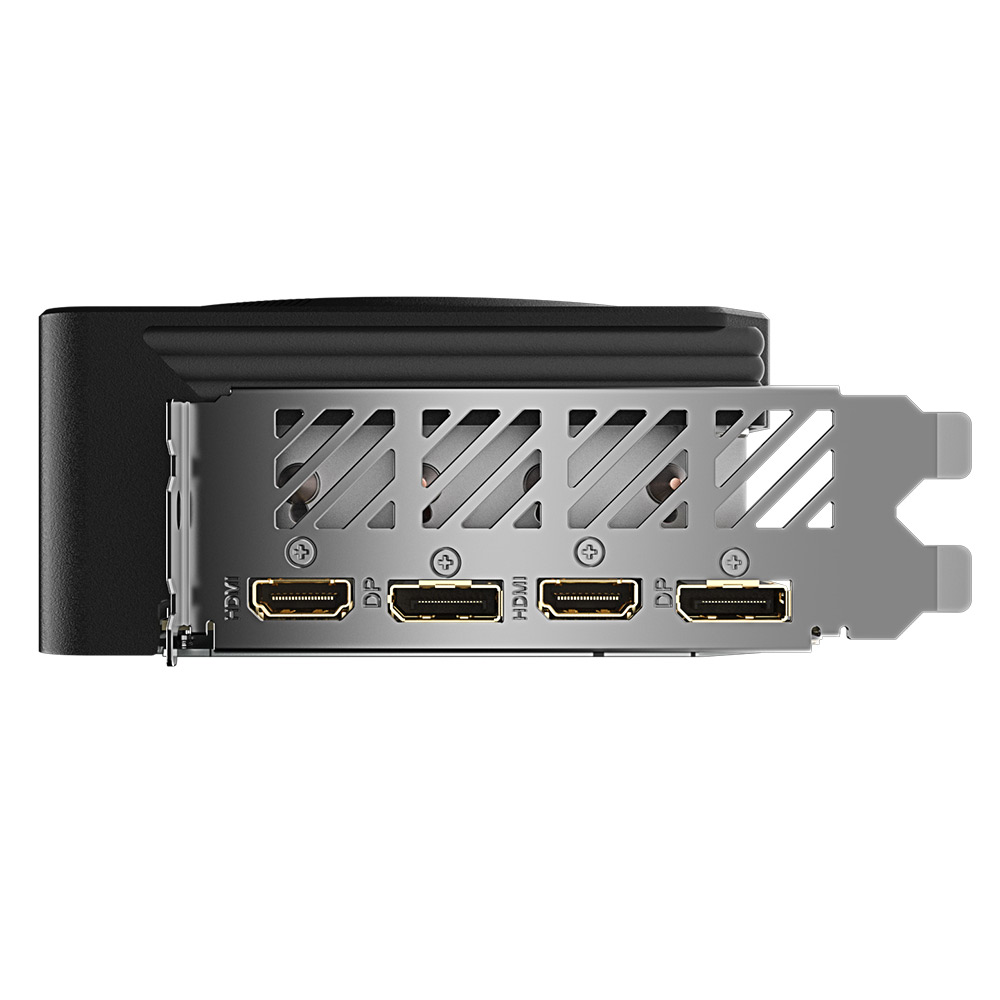

| HDMI (Max Res) | 2 x HDMI 2.1 Port (7680×4320) |
| DisplayPort | 2 x Displayport 2.1 (7680×4320) |
| Cooling | Triple Fan |
| Power Connection | 2 x 8-pin PCIe power 700W or higher PSU Recommended |
| Card Dimensions | 302mm x 130mm x 56mm (LxHxD) |
| Mounting | 2.7 Slots Full Height |

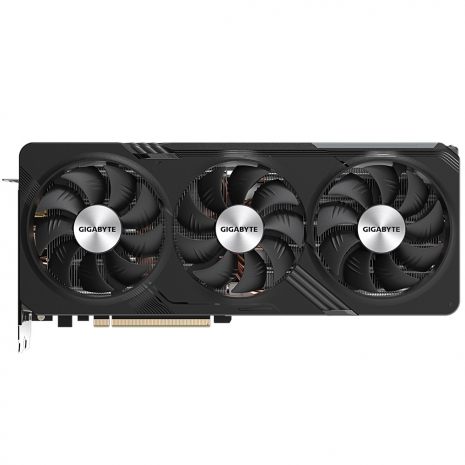

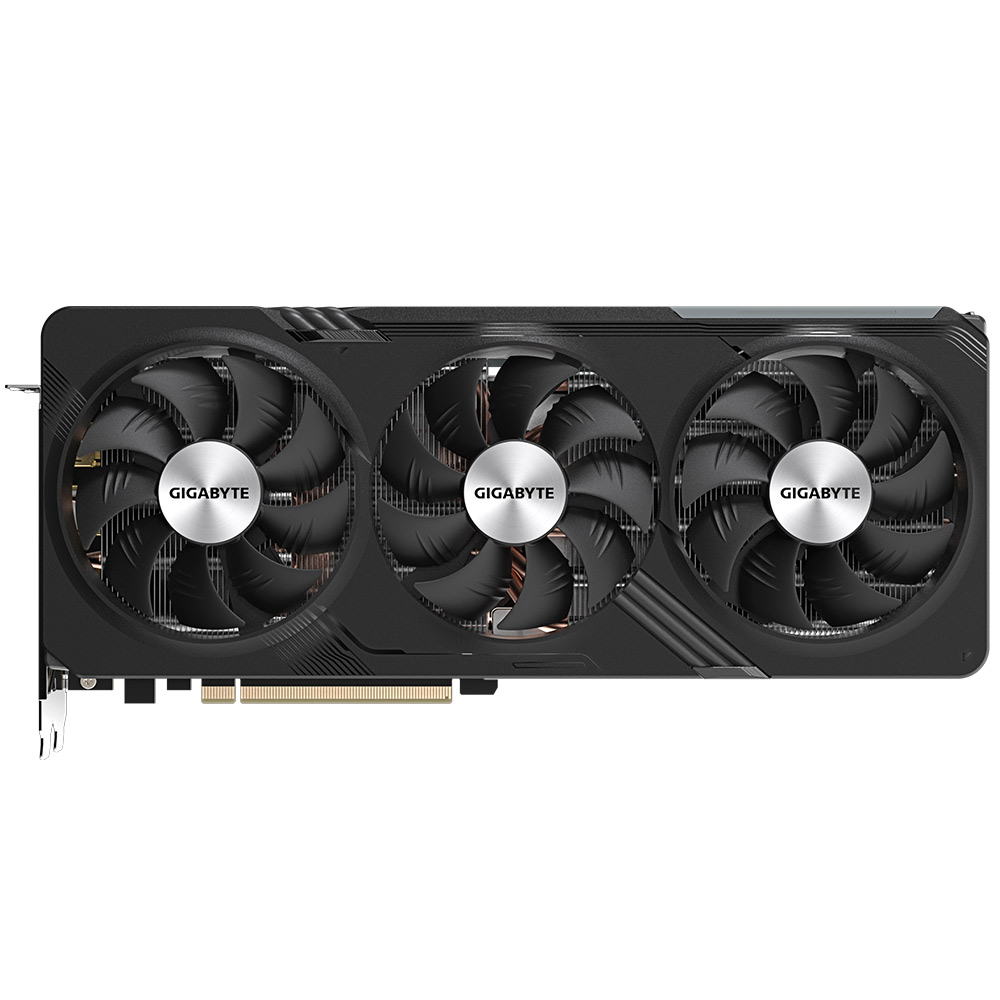

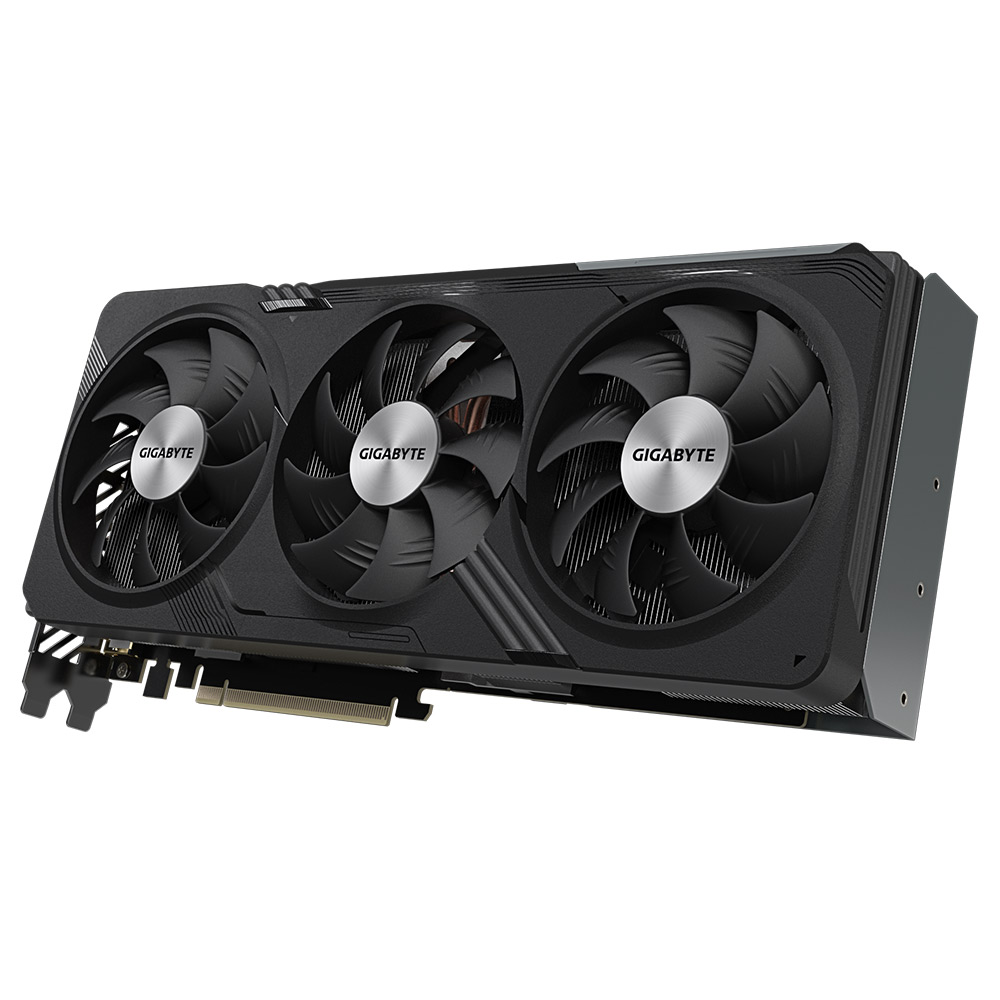

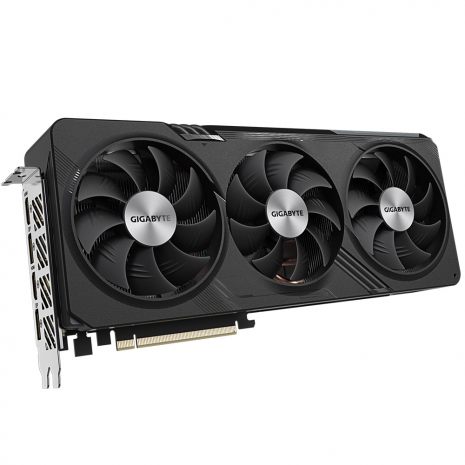

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of the sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

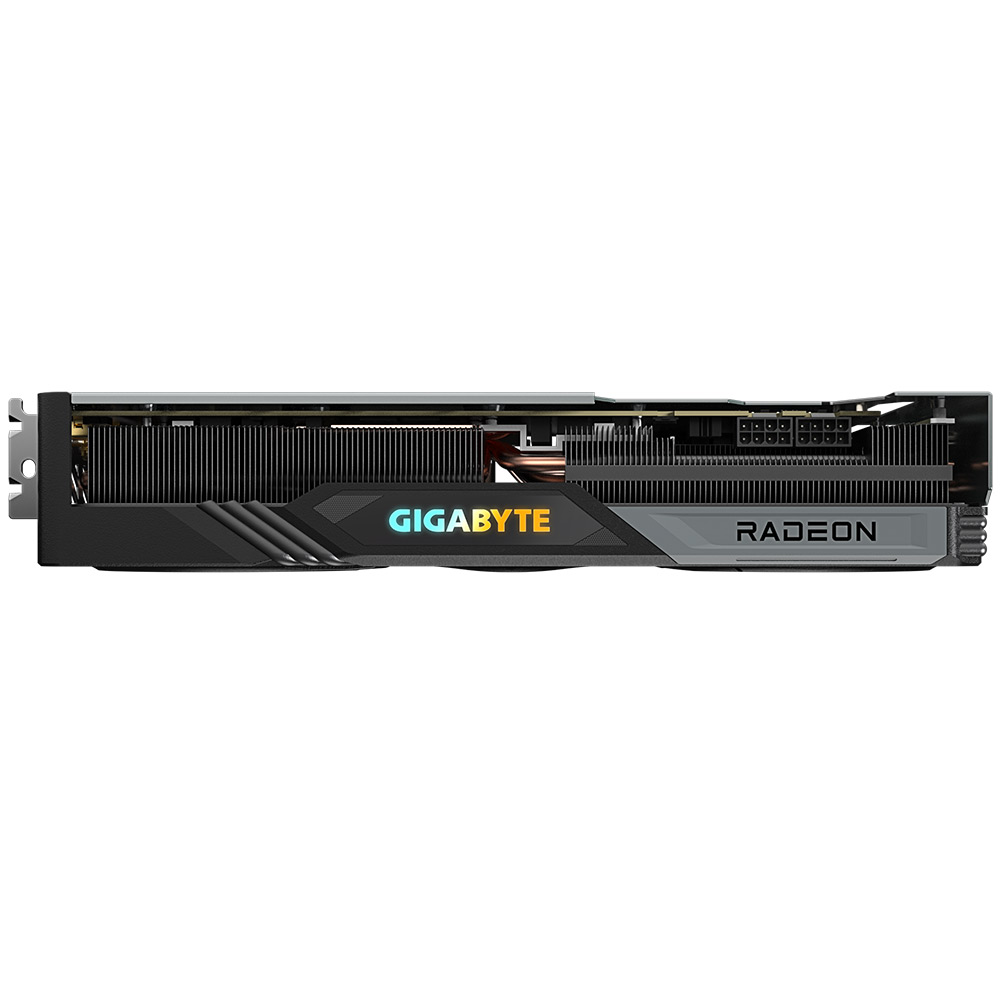

LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of the sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
More Info here - https://www.gigabyte.com/Graphics-Card/GV-R77XTGAMING-OC-12GD
GPU Series:
RX 7700 XT
Card Length:
302
Displayport:
2
DVI Ports:
0
Fanless:
GTIN:
4719331314446
HDMI Ports:
2
Low Profile :
MPN:
GV-R77XTGAMING OC-12GD
VRAM:
12GB
New features
Manufacturer:
Gigabyte
