It’s revolutionary – the first all-new class of memory in 25 years. Intel® Optane™ memory creates a bridge between the DRAM and storage to deliver an intelligent, amazingly responsive computing experience.
Accelerate Your Experience
This game-changing technology intelligently accelerates new 7th Gen Intel® Core™ processor-based systems while affordably maintaining mega-storage capacity, to deliver a responsive computer experience with short boot times, fast application launches, extraordinary gaming, and responsive browsing.
Intelligent System Acceleration
Optimize your computer responsiveness with up to 2x1 faster boot, 5x2 faster web browser launch, and 67% faster3 game launch. Intel® Optane™ memory is a smart and adaptable system accelerator that adjusts to your computing tasks making everything you do faster, smoother, easier. Its intelligent software automatically learns your computing behaviors to accelerate frequent tasks and customize your computer experience.
Wait Less, Do More
Intel® Optane™ memory in your PC delivers amazing responsiveness so you can start up quickly, search and find files up to 4x faster4 and save large files with virtually no lag. Experience up to 5.8 faster5 email application launch, and rev up your gameplay with an up to 65% improvement in loading the next level3.
Speed up Your Storage
A high-capacity storage device coupled with Intel® Optane™ memory offers the best of both worlds: high speed acceleration and affordable, large storage capacity.

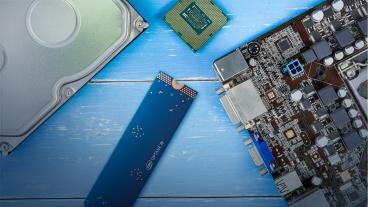

Get your Intel® Optane™ memory module and Intel® Optane™ memory-ready board.
Insert the memory module into the board and reboot.
Download drivers and install them on your system.
For Intel 7th Gen i3, i5, i7 CPUs or newer - requires C236, B250, Q250, H270, Q270, Z270 Chipset and M.2 Slot.
Capacity 16 GB
Performance
Sequential Read (up to) 900 MB/s
Sequential Write (up to) 145 MB/s
Random Read (8GB Span) (up to) 190000 IOPS
Random Read (100% Span) 190000 IOPS
Random Write (8GB Span) (up to) 35000 IOPS
Random Write (100% Span) 35000 IOPS
Latency - Read 7 µs
Latency - Write 18 µs
Power - Active 3.5 Watts
Power - Idle 1 Watt
Reliability
Vibration - Operating 2.17 Grms (5-800 Hz) MAX
Vibration - Non-Operating 3.13 Grms (5-800 Hz) MAX
Shock (Operating and Non-Operating) 1500 G / 0.5 ms
Operating Temperature Range 0°C to 70°C
Endurance Rating (Lifetime Writes) 182.5 TB
Mean Time Between Failures (MTBF) 1.6 Million
Uncorrectable Bit Error Rate (UBER) < 1 sector per 10^15 bits read
Warranty Period 5 yrs
Package Specifications
Form Factor M.2 22 x 80mm
Interface PCIe NVMe 3.0 x2
Advanced Technologies
Enhanced Power Loss Data Protection No
Temperature Monitoring and Logging Yes
End-to-End Data Protection Yes
Intel® Rapid Start Technology Yes
Intel® Remote Secure Erase No
