Interface | USB |
SNR(dB) | 114dB |
THD+N | 0.0006 %(104 dB) |
Headphone Output Power | Line output (RCA, 3.5) : 1 Vrms (2.828 Vp-p) Headphone output : 1.3 Vrms (3.677 Vp-p) |

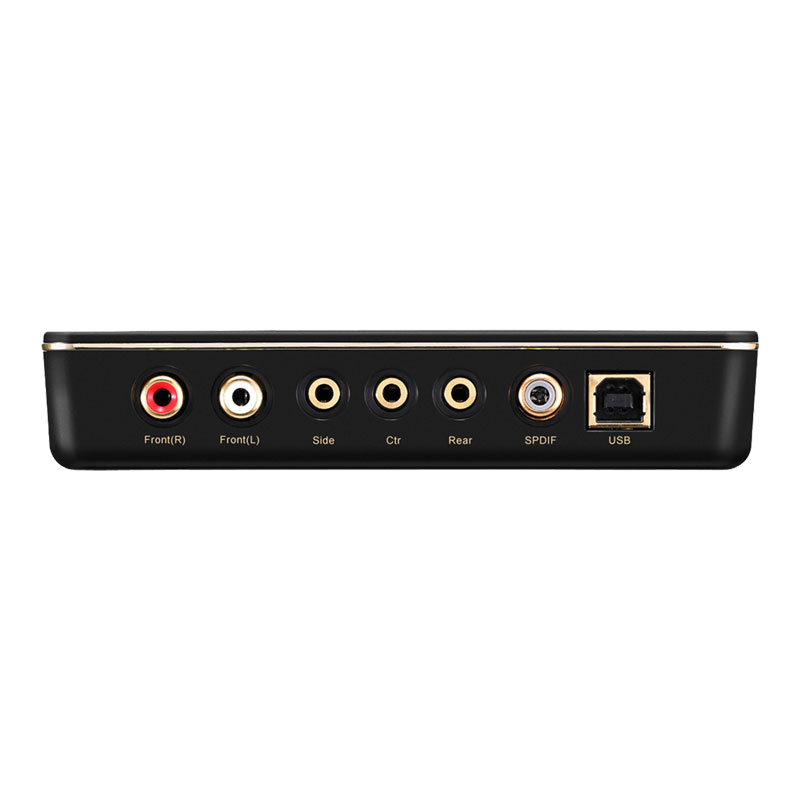

I/O | 4 x 3.5 mm jack (1/8") (Headphone out /Side out/Center-Subwoofer out/Rear out) 2 x RCA (Un-Balanced) 1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo) 1 x S/PDIF out (1 x Coaxial) |
Audio Processor | Cmedia 6632AX |
D-A Converter | Cirrus Logic CS4398 Cirrus Logic CS4362 |
A-D Converter | Cirrus Logic CS5361 |
ASIO | Yes |
Accessories/Box Content | S/PDIF adapter x 1 Quick start guide x 1 USB cable x 1 |
Operating System (Compatibility) | Windows10(32/64bit) Windows8.1(32/64bit) Windows7(32/64bit) |
Find the full list of features at https://www.asus.com/Motherboards-Components/Sound-Cards/All-series/Xonar-U7-MKII/.
