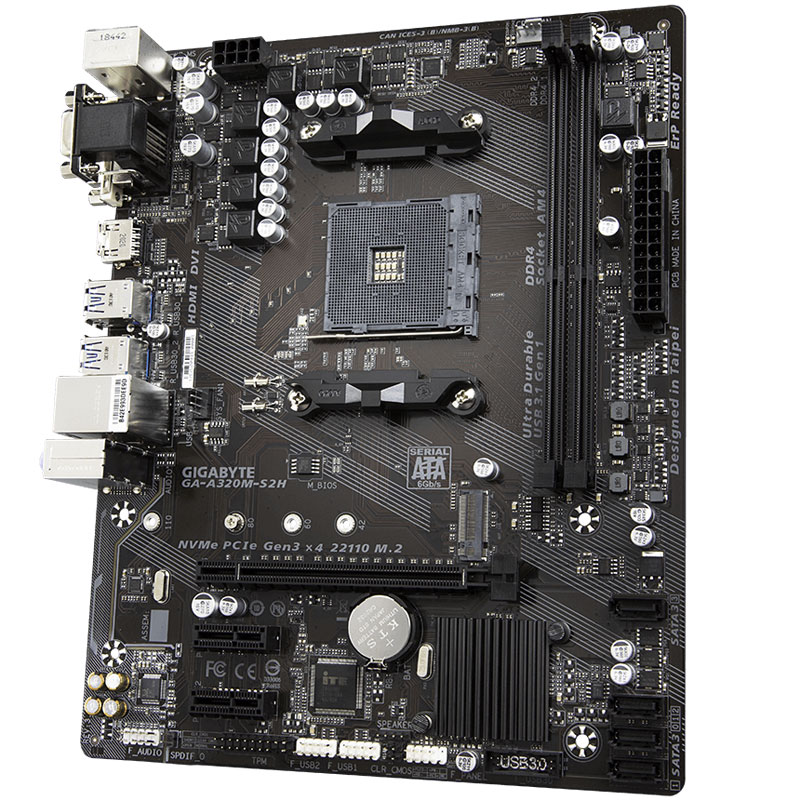

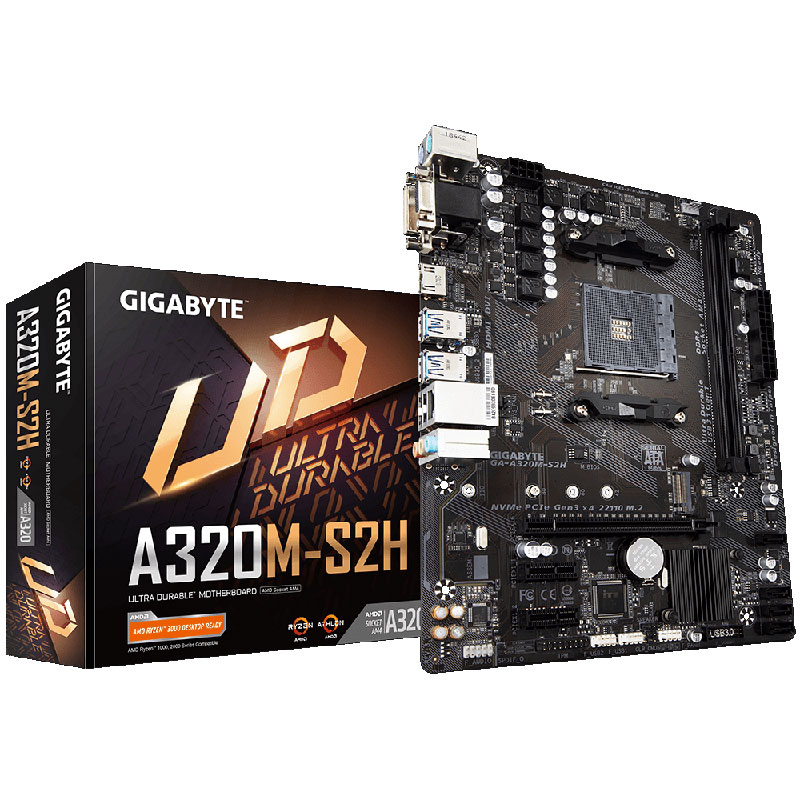

Gigabyte GA-A320M-S2H V3 AM4 MicroATX Motherboard

£40.00
(£48.00 inc VAT)
No Lighting Headers
Short description:

A320 Chipset

55469
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

AMD A320 Ultra Durable Motherboard with Hybrid Digital VRM Solution, NVMe PCIe 3.0 x4 22110 M.2, Realtek GbE LAN with cFosSpeed, Smart Fan 5, 3 Display Interfaces, Anti-Sulfur Resistors Design



  • Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Hybrid Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 & SATA Mode M.2
  • Multiple Display with HDMI, DVI and D-Sub
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • Anti-Sulfur Resistors Design



Form Factor Micro ATX Form Factor; 24.4cm x 19.5cm
CPU Socket AM4 for AMD Ryzen and 7th Gen A-Series / Athlon CPUs (CPU Support)
Chipset AMD A320
Memory Slots 2 x DDR4, up to 64GB, Dual Channel
Memory Speed Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
* Actual support may vary by CPU.
PCI Slots 0
PCI-Express 16x  1 x PCI Express x16 slot, running at x16 3.0
PCI-Express 4x 0
PCI-Express 1x 2 x PCIe x1 2.0
Multi-GPU -
USB Ports Chipset

2 x USB 3.1 ports Internal
2 x USB 2.0/1.1 ports Rear, 4 Internal

CPU

4 x USB 3.1 Ports Rear
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC
Analogue Outputs
Graphics 1 x VGA D-Sub Port Max 1920 x 1200
1 x DVI-D Port Max 1920 x 1200
1 x HDMI Port Max 4096 x 2160 @ 24Hz HDMI 1.4
* Graphics Support only on Supported Processors eg APU models. Ryzen non-APU processors don't support internal graphics (only Ryzen models ending in G have graphics)
LAN Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless -
SATA Ports 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
SATA Express -
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU
Lighting -
Fan Headers 1 x CPU fan header
1 x System fan header
PSU Connectors 24pin + 8pin AUX

Find the full list of features at https://www.gigabyte.com/Motherboard/GA-A320M-S2H-rev-3x.

Form Factor:
MicroATX / uATX
Availability:
in stock
Condition:
new
GTIN:
4719331802585
MPN:
GA-A320M-S2H

Motherboards

Chipset:
AMD A320
M.2 Ports:
1
Memory Slots:
2
Memory Type:
DDR4
PCI:
0
PCI Express 16x :
1
PCI Express 1x:
2
SATA Ports:
4
Socket Type:
AM4
Wireless Support:
Lighting Headers:
No Lighting Headers
Thunderbolt Add-in Card Support:

New features

Manufacturer:
Gigabyte
+ −
