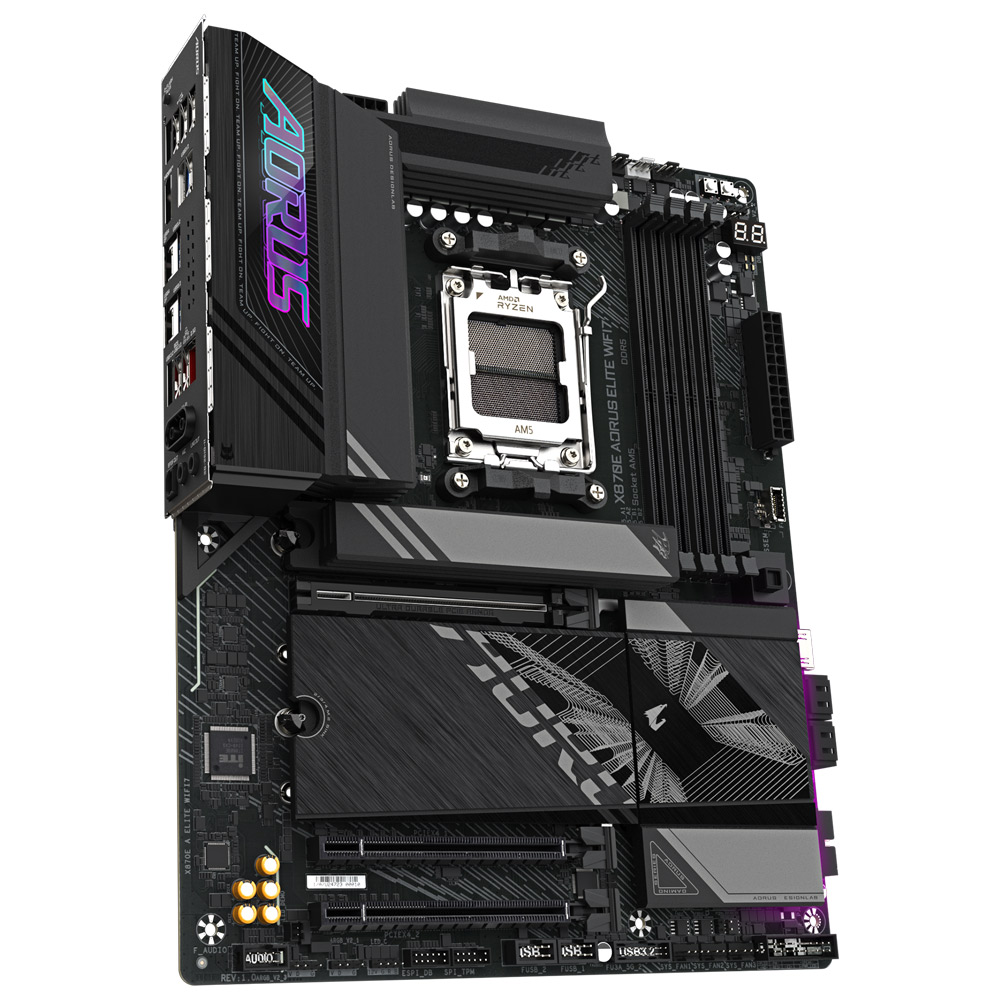

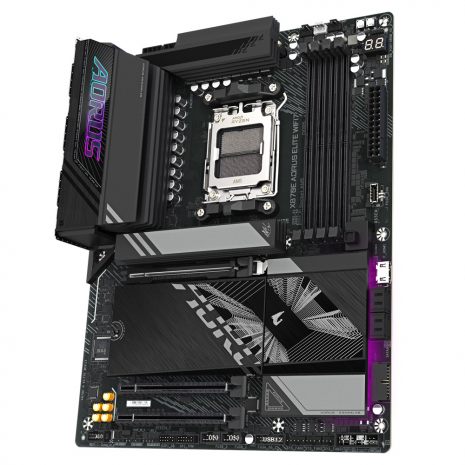

- AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click：M.2 heatsinks with screwless design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L

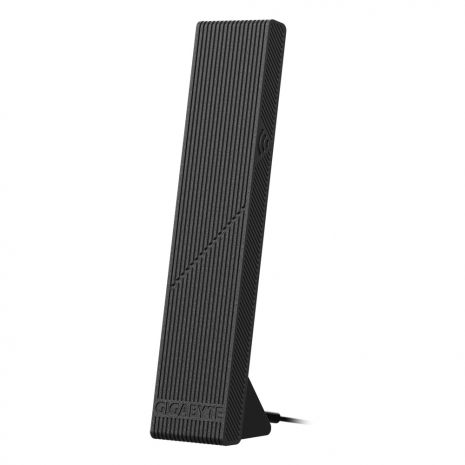

- Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI
- Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
Specification
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| CPU Socket | Supports AMD Socket AM5 Ryzen™ 7000-9000 Series Processors - CPU Support Link | |
| Chipset | AMD X870E | |
| Memory | Architecture | 4 x DDR5 DIMMs (Dual Channel) non-ECC, un-buffered |
| Capacity | 256GB (64GB single DIMM capacity) | |
| Speed | Up to 8200 Mhz(OC) | |
| Extras | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| PCI Slots | 0 | |
| PCI-Express x16 | CPU - 1 x PCIe 5.0 x16 Slot (PCIXE16), supports x16 speed (The above slot generation and bandwidth is affected by the processor model) When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
|
| PCI-Express x4 | - | |
| PCI-Express x1 | - | |
| Multi-GPU | - | |

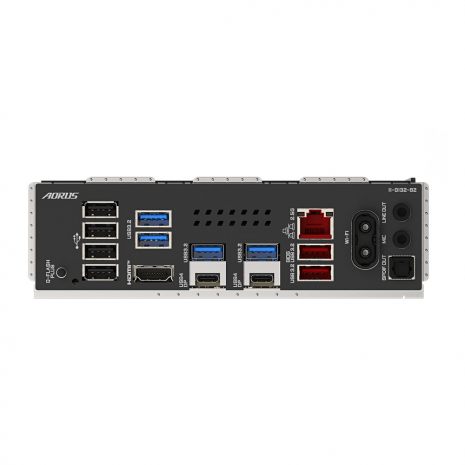

| USB | External | - 2 x USB 4.0 Type C Ports (CPU + ASMedia) - 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 4 x USB 3.2 Gen1 Ports (1 from CPU, 3 from Chipset) - 4 x USB 2.0 Ports (from Chipset) |
| Internal | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x USB 3.2 Gen2x2 Header Type-C (20 Gb/s) (Supports 1 port) |
|
| Audio | - Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. - Up to 7.1 Supported |
|
| Graphics |
Integrated AMD graphics on processor (Actual support may vary by CPU)
- 1 x HDMI 2.1 max. resolution up to 4K 60Hz - 1 x HDMI front / internal port supports HDMI 1.4 up to 1920 x 1080 @ 30Hz - 2 x USB4 Type C supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz |
|
| LAN | - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Realtek) | |
| Wireless | - Chipset brand varys by PCB Version - email us to confirm if this needs to be confirmed on current stock - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard - No Win 10 Driver - requires Windows 11 |
|
| Storage Interfaces | CPU | - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 (M2A_CPU) * AMD Ryzen™ 7000 and 9000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| Chipset | - 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used * The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector. - 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs - 4 x SATA3 6.0 Gb/s Connectors |
|
| Notes | Supports RAID 0, 1, 10 for SATA devices | |
| Lighting | - 3 x addressable RGB Gen2 LED strip headers - 1 x RGB LED strip header |
|
| Fan Headers | - 1 x CPU fan header - 1 x CPU fan/water cooling pump header - 3 x system fan headers - 1 x system fan/water cooling pump header |
|
| PSU Connectors | - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connector |
|
Find the full list of features at www.gigabyte.com
Form Factor:
ATX
BTF / Stealth Support:
GTIN:
4719331864613
MPN:
X870E AORUS ELITE WIFI7
Motherboards
Chipset:
AMD X870E
M.2 Ports:
4
Memory Slots:
4
Memory Type:
DDR5
PCI:
0
PCI Express 16x :
3
PCI Express 1x:
0
SATA Ports:
4
Socket Type:
AM5
Wireless Support:
Lighting Headers:
Supports RGB and Digital RGB
Thunderbolt Add-in Card Support:
New features
Manufacturer:
Gigabyte
