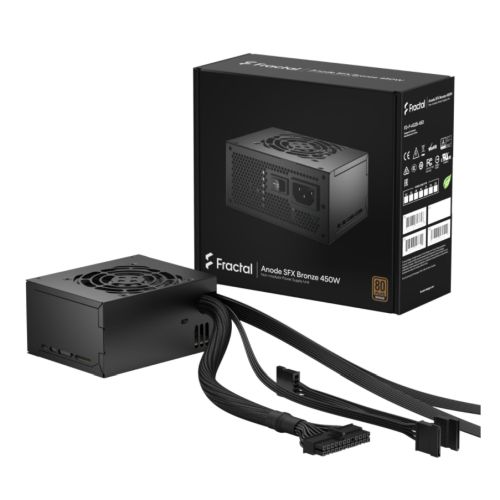

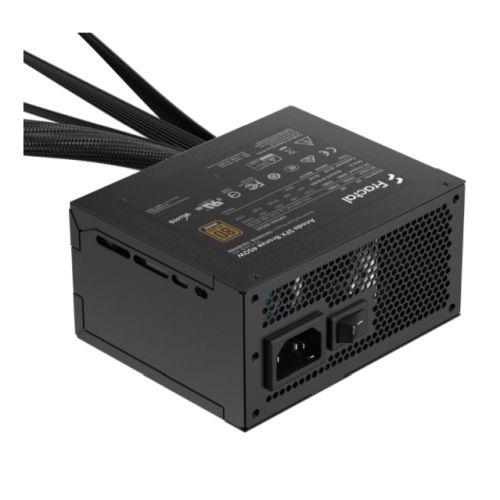

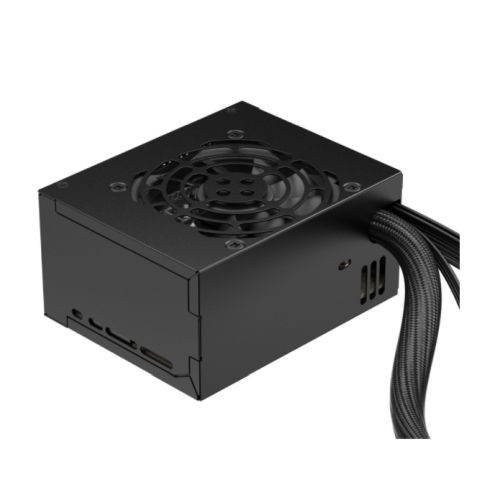

Fractal Design Anode SFX 450W 80Plus Bronze Power Supply

£60.00
(£72.00 inc VAT)
Short description:
For MicroATX / SFX Chassis
80Plus Bronze
16369
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

Solid, sturdy and surprisingly quiet, the Anode SFX is a strong contender for any build with a modest footprint. The updated electrical design and included UltraFlex cables make it an excellent choice for reliability and ease of use.


  • 80 PLUS® Bronze efficiency and high reliability
  • Optimized fan curve that guarantees a remarkably quiet 80 mm fan
  • Optimized cable lengths for smaller cases
  • UltraFlex™ cables that bend and twist effortlessly to fit your installation instead of fighting it
  • Updated DC-DC design and SFX 3.42 standard for improved start-up and transient load response


Dimensions W D H
100mm 125mm 64mm
ATX Spec SFX 12V Version 3.42, EPS 12V 2.92
Effiency 80 Plus Bronze Certified
Fan 80mm Fan
Connectors Molex Floppy SATA
0 0 3
PCI-E M.board AUX
2 x 6/8Pin 20/24 1 x 4/8 Pin

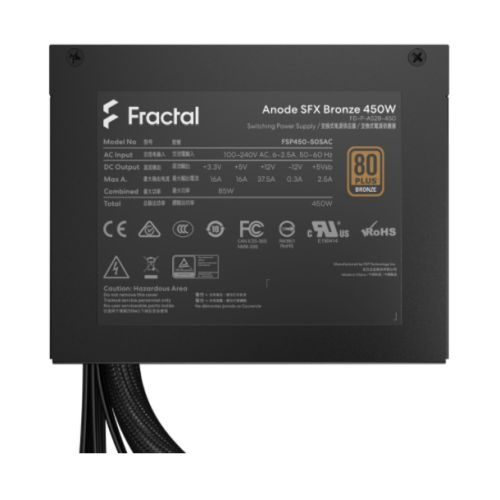

Output Current +3.3v +5v +12v
16A 16A 37.5A
-12v -+5vsb 12v Rails
0.3A 2.5A 1
+3.3v & 5v Power 85W
+12v Power 450W
-12v Power -
+5vsb Power
Total Power 450W
Input Voltage 100-240v Auto
Modular No
Motherboard Cable Lengths 30cm for 24pin

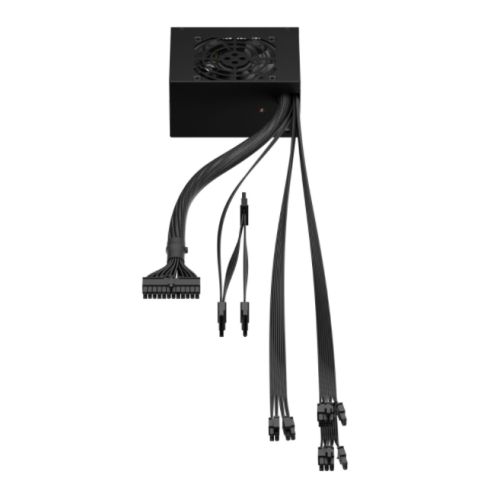

Ultraflex Cables
  • Easy installation thanks to an ultra-high strand count wire and special insulation that makes the wires extremely flexible
  • The cable lengths are optimized and customized for smaller Fractal cases

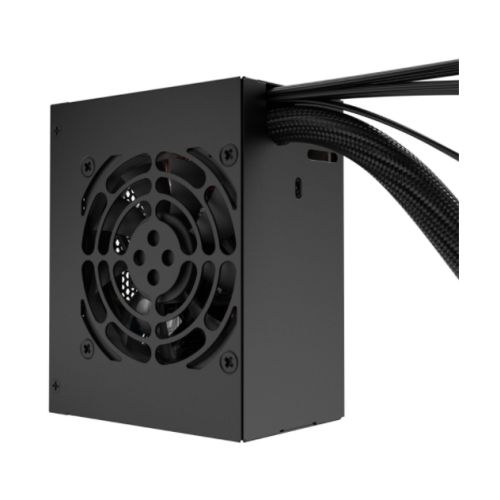

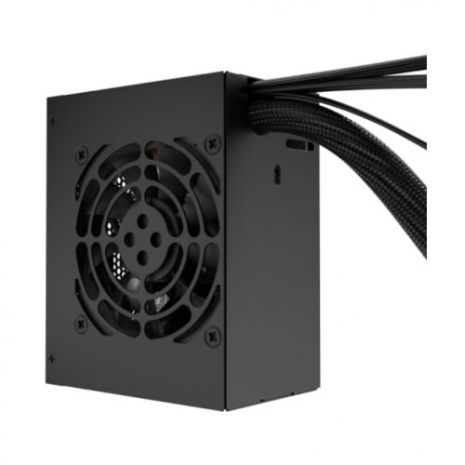

Small and quiet
  • Our smallest PSU is a strong contender for any build with a modest footprint

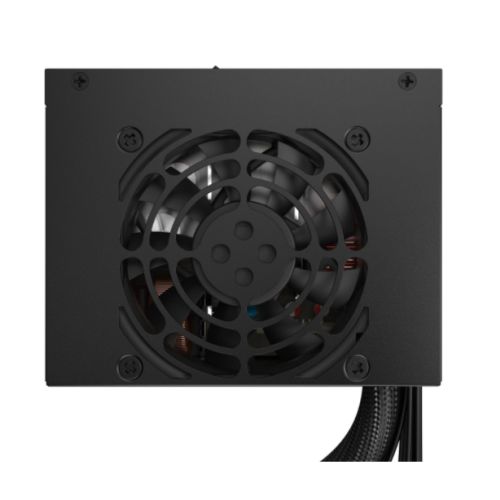

  • The optimized fan curve ensures a remarkably quiet 80 mm fan

Updated electrical design
  • Updated DC-DC design and SFX 3.42 standard for improved start-up and transient load response
  • Features over voltage protection, under voltage protection, over power protection (3,3V and 5V) and short circuit protection
Form Factor:
SFX
ATX12V Connections:
1 x 8 pin
Cable Configuration:
Fixed Cables
Efficiency:
80 Plus Bronze (88%)
GTIN:
7340172703648
MPN:
FD-P-AS2B-450-UK
PCI-E Connections 6/8-pin:
2 x 6/8pin
SATA Power:
3
Wattage:
450W

New features

Manufacturer:
Fractal Design
+ −
