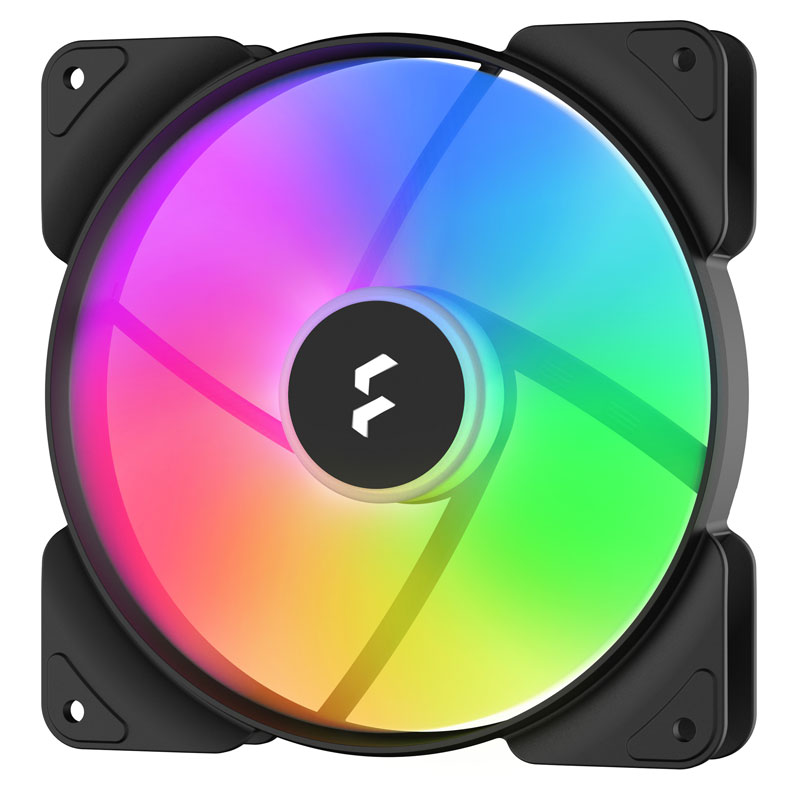

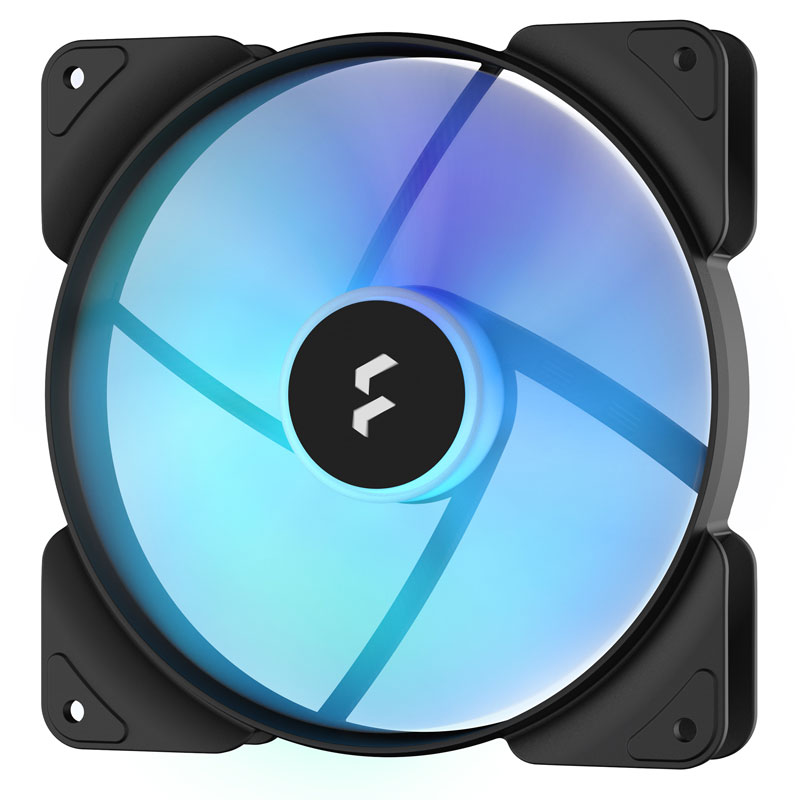

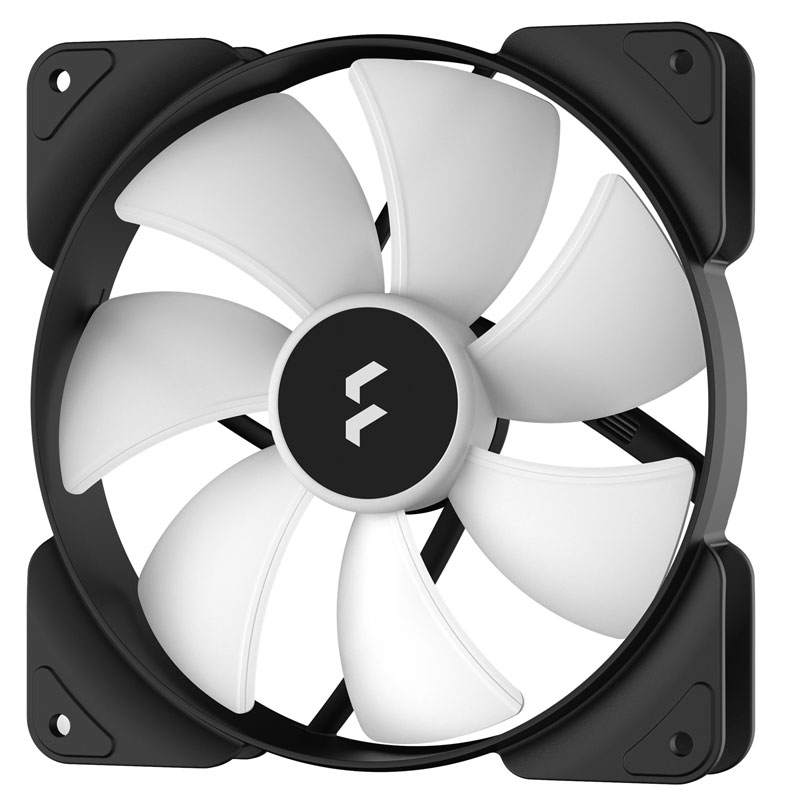

Fractal Design Aspect 14 14cm RGB PWM Case Fan

£13.00
(£15.60 inc VAT)
Short description:
RPM : 500-1700rpm

Noise : 10-35.5dB(A)
25328
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

Aspect 14 RGB PWM

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.

  • • Less turbulence thanks to aerodynamic stator struts
  • • 6 individually addressable hub-mounted RGB LEDs
  • • PWM control with a wide RPM speed range



Specifications

Dimensions (LxWxD) 140 x 140 x 25 mm Screw Hole Pattern 125 x 125 mm

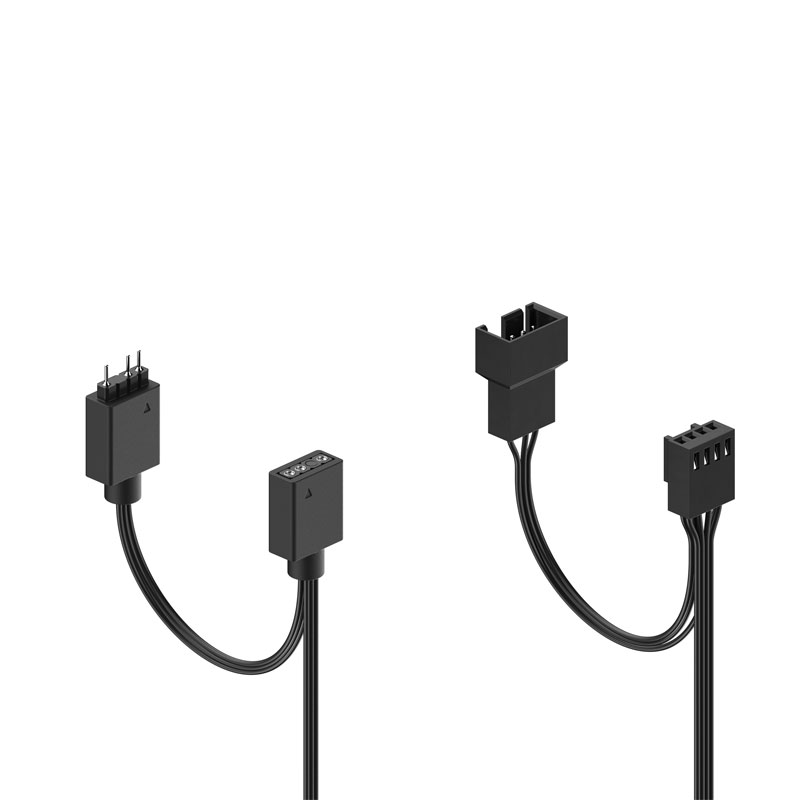

Power Connector 4-pin PWM and 3-pin ARGB For Lighting Bearing Rifle
Number of Blades 7 Rotation Speed 500-1700 RPM
Noise Level <10 – 35.5 dB(A) Max Airflow (CFM) 20 – 78 CFM
Max Airflow (m³/h) 34 – 132.5 m³/h Max Pressure 0.30 – 2.05 mm H2O
Fan Typical Input Power 2.16 W Fan Max Input Current 0.24 A
Fan Input Voltage 12 V Minimum Start-up Voltage 7 V
MTTF 90,000 h Unit Weight 155 g
Cable Length 500 mm Cable Type Black ribbon (allows chaining)



Connector Type:
  • 4-pin PWM
GTIN:
7340172703372
MPN:
FD-F-AS1-1405
Fan Flow:
Normal Direction

Case Fans

Airflow:
78cfm
Blade Colour:
Translucent Light / Clear
Fan Size:
140mm
LED Lighting:
ARGB
Noise Level:
35.5dB(A)

New features

Manufacturer:
Fractal Design
+ −
