• Infinity mirror look all around
• Reversed Blade fan that intakes air while seeing the infinity effect
• Only one cable is required for a cluster of fans
• Embedded magnetic Fluid Dynamic Bearing to provide stability, durability, and longevity
• 40 LEDs in each fan
• Quick PIN connection to provide ease of installation
• Optimized for mounting at the bottom of the case or on top of the radiator

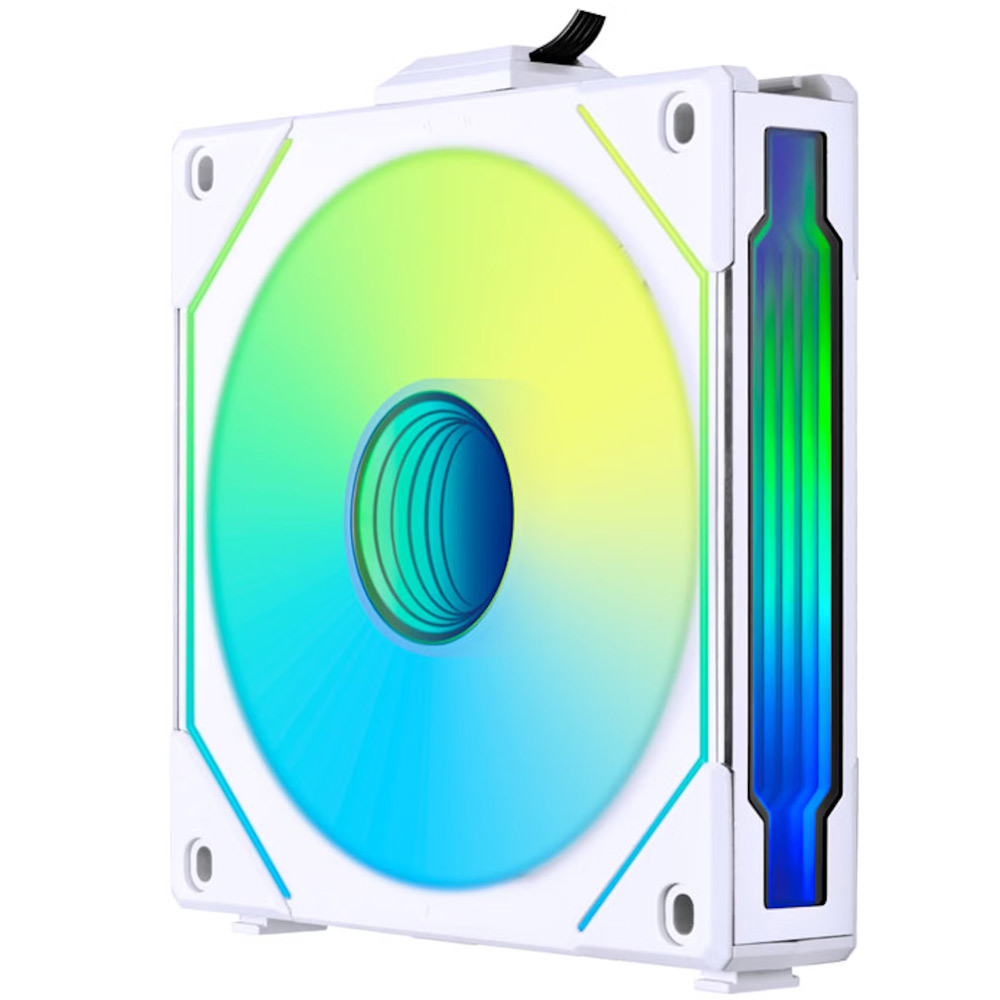

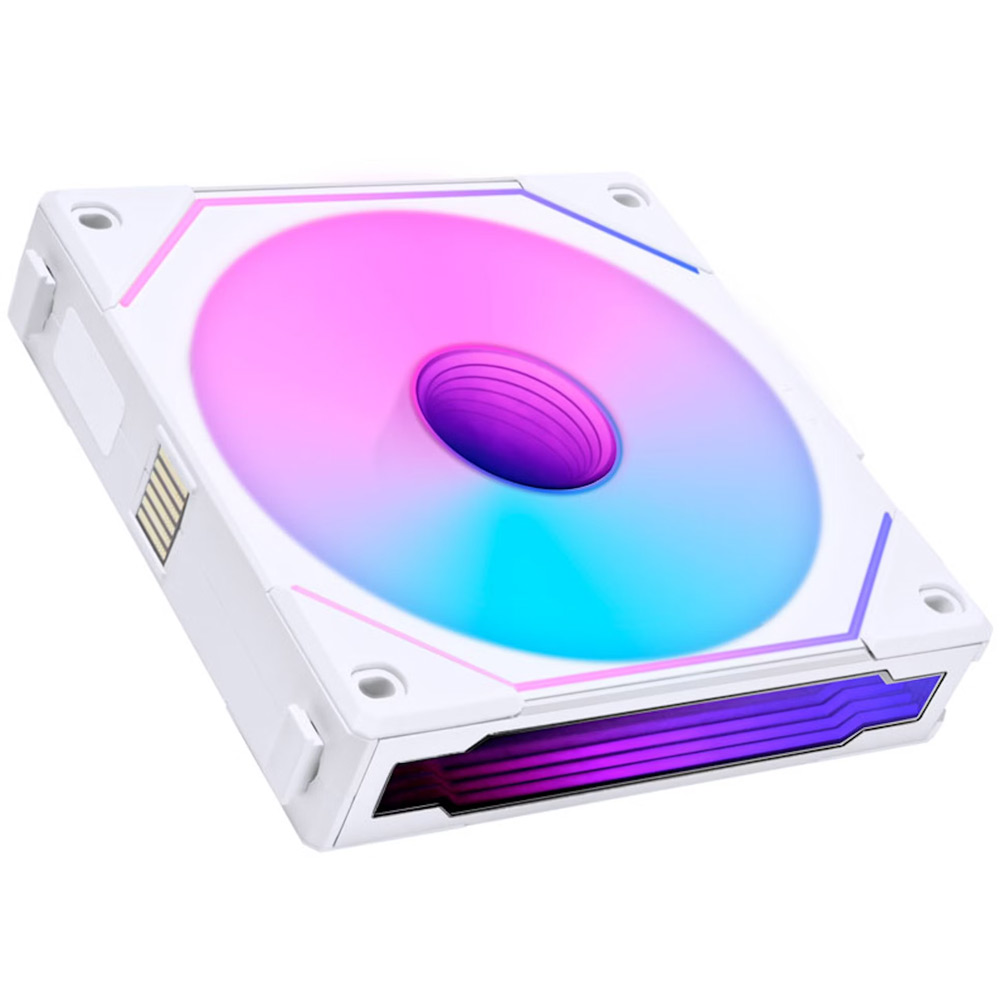

Infinity Mirror ARGB Fan
Introducing a new look to PC fans and a new level of installation simplicity and light effect customizability.
Infinity Mirror
Daisy-Chain Design
Silence at High Fan Speed
L-Connect 3 Software
Start/ Stop Fan

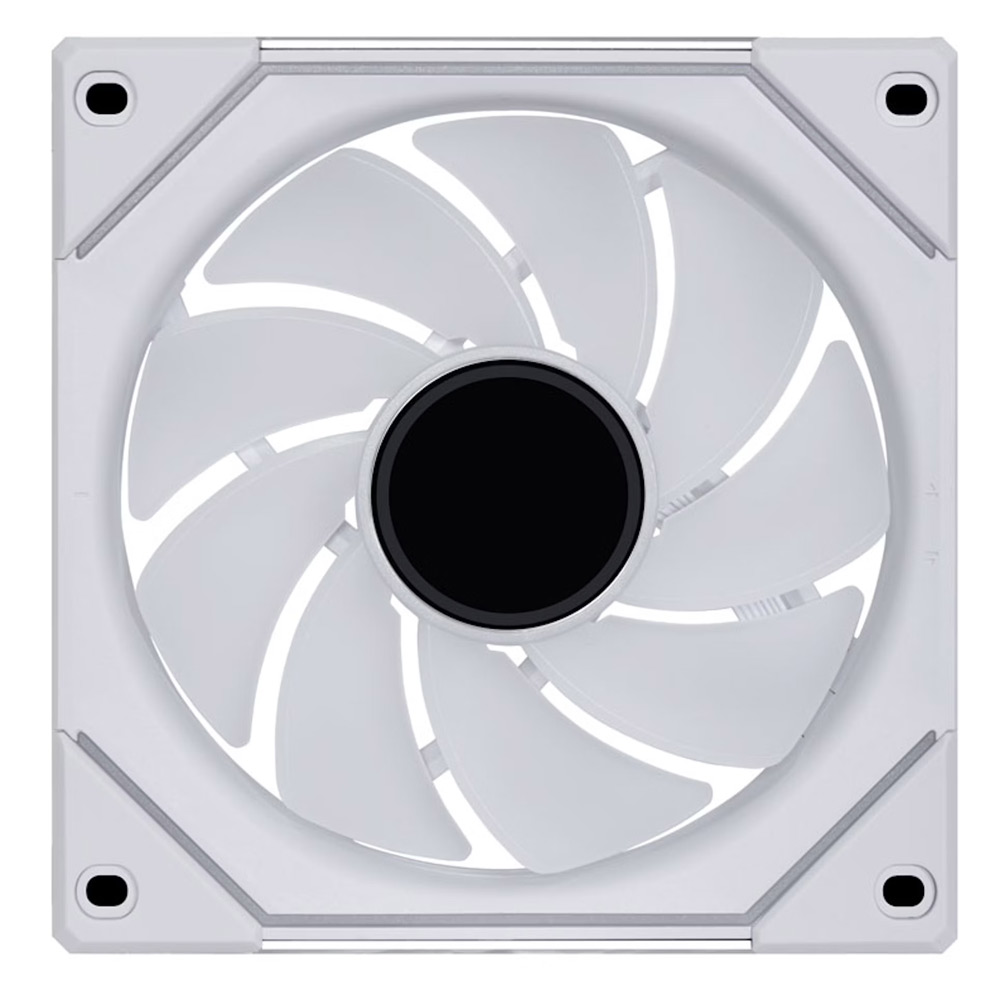

Reversed Blade
CONSISTENT APPEARANCE
No matter intake or exhaust SL-INF fans
INFINITY MIRROR FAN
A combination of the original UNI FAN SL and AL with a touch of infinity mirror, the SL-Infinity fans glow clear with multi-layer effects from any visible angle.
CENTERED INFINITY MIRROR ARGB
The circular-shaped infinity mirror at the center of the fan is tuned to have multiple layers spaced 0.5mm apart.
SIDE FRAME ARGB
Following the iconic angular lighting style of SL fans, the SL-Infinity fans have 2 thin LED strips on both sides of the fan blade.
ALUMINUM TRIM SURROUNDED INFINITY MIRROR
Surrounding aluminum trims are located on both sides of the frame. The geometric shape of the infinity mirror follows the front ARGB lighting strip in a top and bottom pattern that creates a 3D indented look.

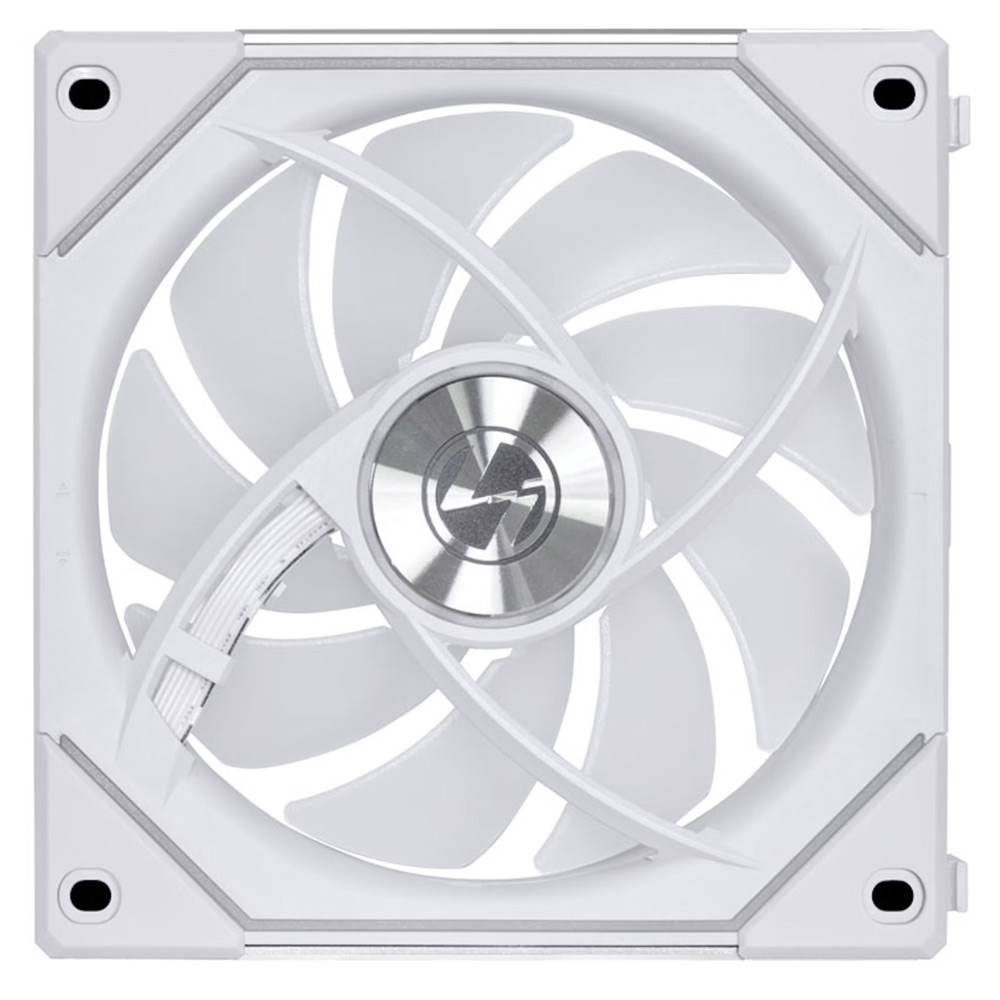

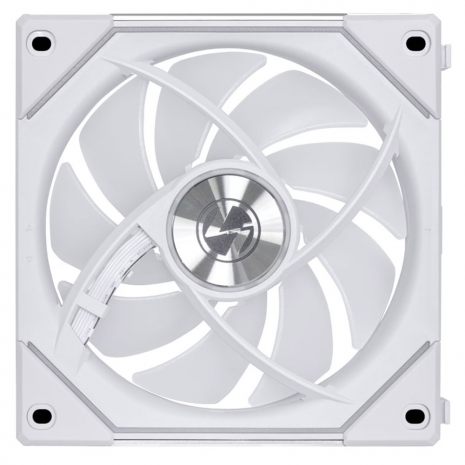

REAR RIM OF LED AROUND THE ALUMINUM LOGO
The circular-shaped infinity mirror at the center of the fan is tuned to have multiple layers spaced 0.5mm apart.
UNPRECEDENTED MODULARITY
The 2nd generation of UNI FAN SL revisits the interlocking style that can connect up to 4 fans in a cluster and makes cable management simpler and improves compatibility with radiators fittings.
DAISY CHAIN FAN
A pin-to-pad contact point passes the signal and power through the fan cluster.
REMOVABLE KEYLOCK
The interlocking key on each fan is now removable to improve compatibility with radiators fittings.
REVERSIBLE CABLE MODULE
The cable module is now placed at the center of the fan and can switch orientation to reduce clearance issues with the radiator inlet and outlet.
UNCOMPROMISED PERFORMANCE
The UNI FAN SL-INF Reverse blade operates with a slightly higher noise level with a better airflow (63.6 CFM Max) comparing to the original UNI FAN SL-INF.

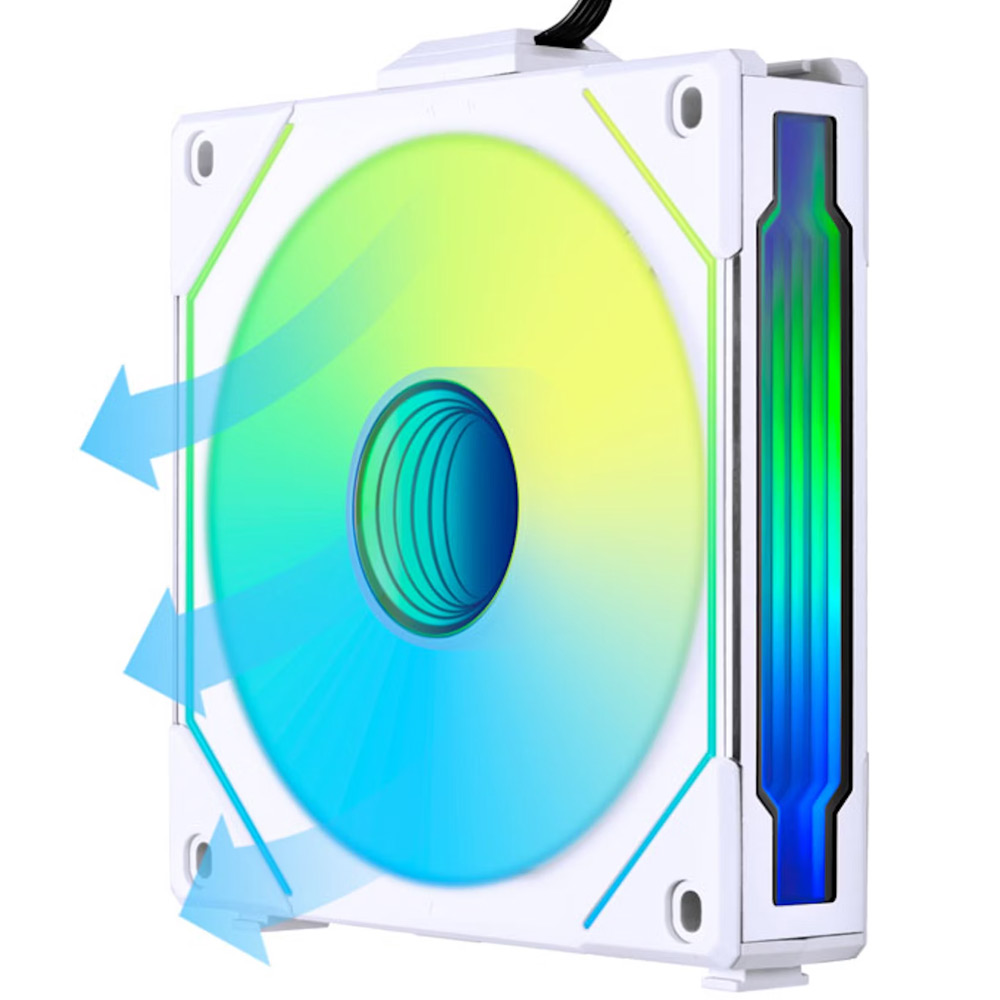

LOWER WIND NOISE
When installed as intake fan with the reverse blade, the wind noise is lower than the regular blade.
Note: More obvious when installed on a radiator
THE SAME CONTROLLER AS SL-INF
16 FANS IN ONE GO FOR EACH GROUP OF FANS
The included controller is in the SLIN120 Triple Pack,supporting up to 16 fans (4 fans in each group) and 2 SM-type connecting devices.
L-CONNECT 3 SOFTWARE TO CONTROL SL-INF FANS
Control and preview with precision the lighting effect of the SL-Infinity fans with the new L-Connect interface.
Note: Only available when connecting via a UNI FAN SL-INFINITY controller, controller is sold separately or included in triple pack regular fan.
ENDLESS LIGHTING EFFECTS
Similar to the AL fans, L-Connect 3 can set the lighting effects of the SL-Infinity fans for both the fan blades and the fan frame inner edges separately, or go with pre-set combined lighting effects.
Option 1. Set the fan blade and inner fan frame lighting modes individually to achieve a custom look.
Fan Blade & Center Infinity Mirror LED
Angle Fan Frame & Side Infinity Mirror LED
Fan Blade & Center Infinity Mirror + Angle Fan Frame & Side Infinity Mirror LED
Option 2. Select the combining lighting mode
Electric Current
Mixing
Tide
INTELLIGENT START/ STOP FAN
Unique to the SL-Infinity fans, L-Connect 3 features a Start/ Stop mode to completely stop the fan when the CPU or GPU is running below your set temperature (the maximum 50°C), achieving minimal acoustic levels when the system is at low temperature.
SYNC FAN SPEED TO MOTHERBOARD
L-Connect 3 now offers an option to sync fan speed to the motherboard, also known as the PWM mode in the earlier L-Connect version.
∎ Click to pass fan speed control to motherboard
QUICK SYNC LIGHTING WITH UNI FAN SL/ AL AND STRIMER PLUS V1/V2
The quick sync function saves time to synchronize all LIAN LI device lighting effects with one click. Moreover, synchronize all devices to the motherboard software with one click.
∎ Click to pass lighting control to motherboard
DAZZLING AT ALL ANGLE
SPECIFICATIONS
| PRODUCT NAME | UNI FAN SL-INF REVERSE BLADE | |
|---|---|---|
| MODEL | UF-RSLIN120-1B BLACK | UF-RSLIN120-1W WHITE |
| COLOR | Black | White |
| NUMBER OF FANS | 1 | 1 |
| CONTROLLER | No | No |
| MATERIAL | PBT/PC/Aluminum | |
| FAN DIMENSION | 120 X 122 X 25 ( mm ) | |
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | |
| FAN SPEED | 0, 200-2100 RPM | |
| AIR PRESSURE | 2.02 mmH2O (Maximum) | |
| AIRFLOW | 63.6 CFM (Maximum) | |
| ACOUSTIC NOISE | 32 dB(A) | |
| LOCKED CURRENT | ≧50mA | |
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |
| OPERATION VOLTAGE | DC 12V & 5V | |
| START-UP VOLTAGE | ≦6V | |
| INPUT CURRENT | 180mA (FAN) /600mA (LED) | |
| IINPUT POWER | 5.16W | |
| WARRANTY | 2 years | |
- x-pin Fan (Proprietary)
