Prolimatech Ultra Sleek Vortex 120mm PWM 15mm Thickness

£11.00
(£13.20 inc VAT)
Short description:
RPM : 400 - 1300rpm

Noise : 7-17dBA
25191
1
+ −
Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

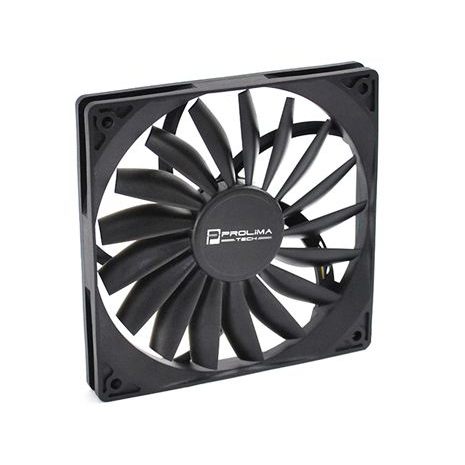

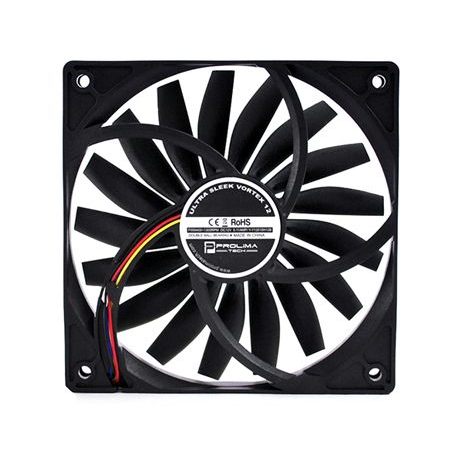

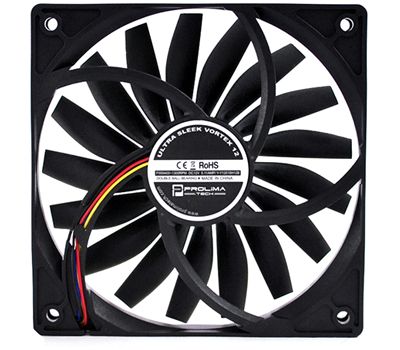

The Ultra Sleek Vortex 12 is a unique 120mm fan that is only 15mm thick! This thinner design helps to free up RAM slots and allows installation in smaller spaces. The USV 12 is not only thin, but also offers superb performance. It provides the highest static pressure of all 120mm fans, making it an excellent choice for water coolers and other radiators with narrow fin spacing!

  • 17 bladed fan specially engineered to provide high static pressure and wind volume while reducing noise.

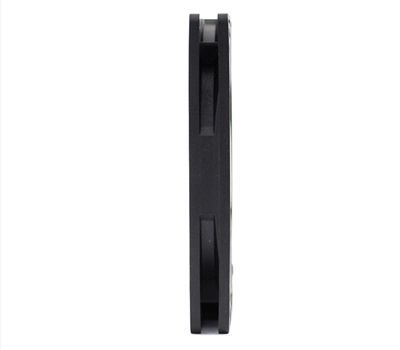

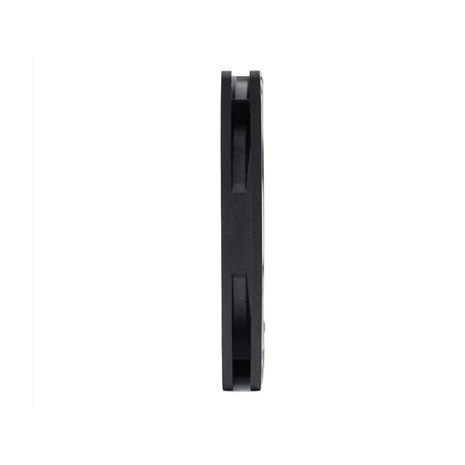

  • Only 15 mm thick! Allows the USV Fan to be installed in smaller spaces that 25 mm fans won't fit!
  • Variable fan speed from 400 to 1300 RPM with PWM.
  • Light weight, reducing stress on boards already burdened with heavy heatsinks!
  • Especially suited for Home Theater PCs and smaller cases, where excellent cooling ability and quiet operation is desired.
Dimension 120 x 120 x 15mm
Bearing Double Ball Bearing
Net Weight 91g
Fan Speed PWM 400 ~ 1300 RPM
Noise Level 7~17 dBA
Airflow 56 CFM
Connector 4 PIN PWM
Rated Voltage : 12 V
Rated Current : 0.12 Max. Amp
Input Power : 1.44 W
Input Current : 0.12 Max. Amp
MTBF : 100,000 h / 35? or 60,000 h / 60?
Static Pressure : 0.9 mmH2O

Connector Type:
  • 4-pin PWM
MPN:
Ultra Sleek Vortex 12 fan
Fan Flow:
Normal Direction

Case Fans

Airflow:
56cfm
Blade Colour:
Black
Fan Size:
120mm
LED Lighting:
None
Noise Level:
17dB(A)

New features

Manufacturer:
Prolimatech
+ −
