Features:
Overall Dimensions | W | D | H |
118mm | 126mm | 160mm | |
Weight | 1020g (including fans) | ||
Heatsink Material | Heatpipe and aluminium fins | ||
Dissipation Area | |||
Mounting Type | Bolt thru / backplate | ||
CPU Sockets | Intel™ Socket 775, 1155, 1156, 1366, 1150, 1151 and 1200: AMD™ Socket AM2/ AM2+/ AM3/ AM3+/ AM4 / FM1 & FM2: |
||
Fan Size | Dual 120 x 120 x 25, Includes Splitter Cable | ||
Fan rpm | 750-1600rpm | ||
Fan Noise | 12.0 - 26.7 dBA | ||
Fan Airflow | 65.5cfm Max | ||
Fan Connector | 4pin PWM | ||
Thermal Grease | GC-2 Thermal Compound |
Applications:
Intel™ Socket 775, 1155, 1156, 1366, 2011*, 1150 &1151:
CPU: All Pentium D/ Pentium 4/ All Celeron D/ All Pentium Dual-Core/ Extreme/ All Core 2 Extreme/ Core 2 Quad/ Core 2 Duo, Core i5, Core i7
AMD™ Socket AM2/ AM2+/ AM3/ AM3+/ AM4 / FM1 & FM2:
CPU: All Athlon 64 X2, Athlon 64, All Athlon II, All Sempron, Phenom, Phenom II, All A Series AMD APU Llano
*Mounting clip for Socket 2011 needs to be purchased separately.
All brands and trademarks are the property of their respective owners.
Design Concept:
The Phantom Black features a masterpiece of top-notch cooling technologies. The unique constellation of 7 optimized power heat pipes, the advanced 2-tower heatsink and the 2 silent 120mm fans with Smart PWM all deliver ultimate thermal performance. The support of TDP over 200W makes the Phantom Black an overkill CPU cooling solution for pro gamers and overclockers.

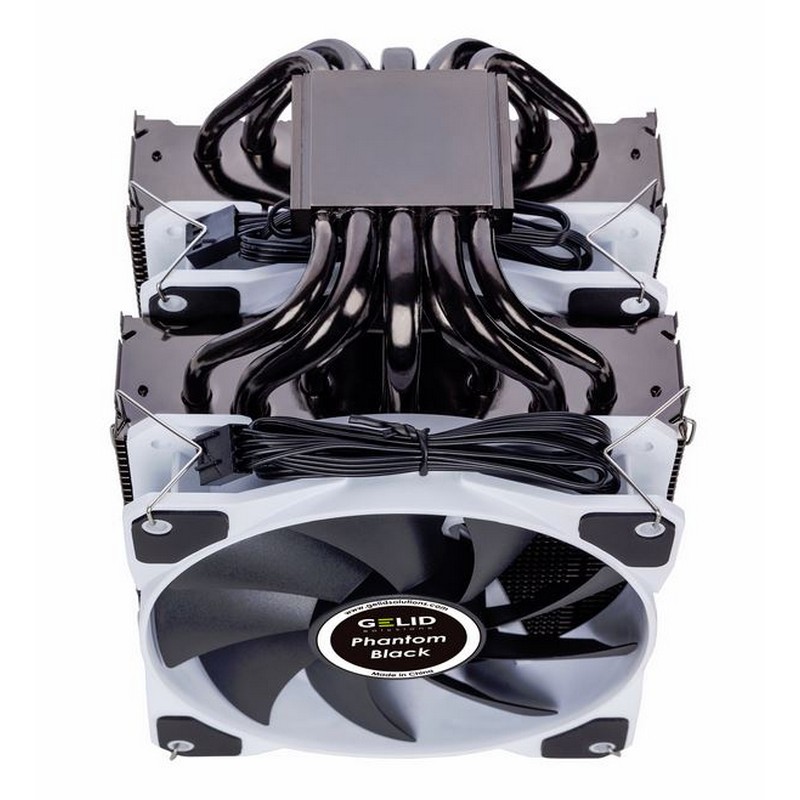

7 Mixed-Size Nickel-Plated power heat pipes serve to optimize heat transfer within the heatsink elements.
Advanced Twin-Tower Heatsink delivers substantially improved cooling performance.
2 Smart PWM Fans provide efficient air flow distribution over the heatsink and keep silent operation.
Triple Fan Option allows a 3rd fan to be installed and skyrockets the cooler performance even more.

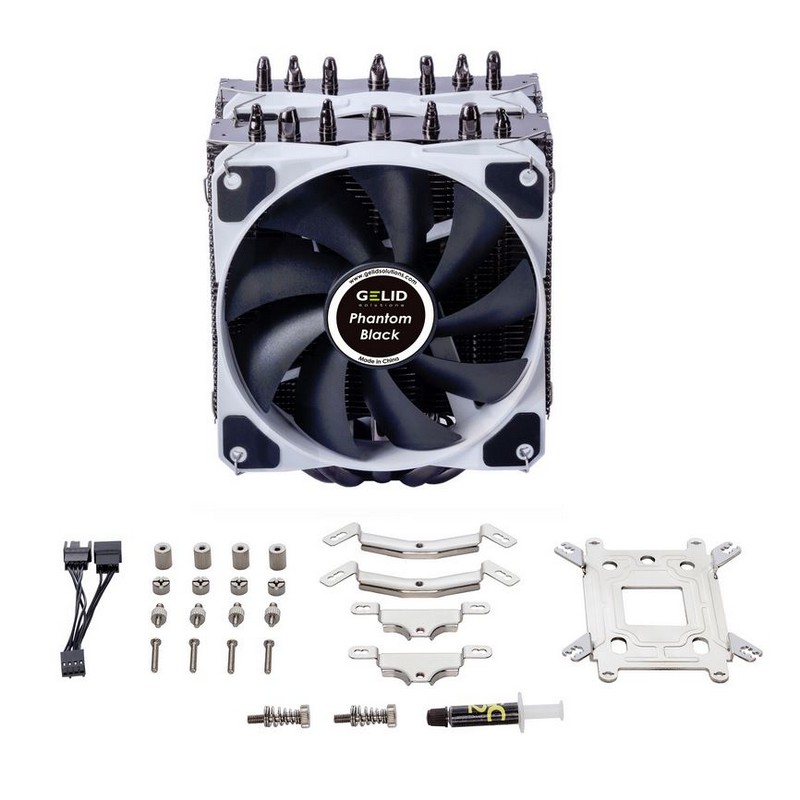

Enhanced Mounting Kit facilitates installation and broadens CPU support.
TDP 200W Support ensures ultra-high performance under CPU overclocking.
High-Class Black Nickel Plating enhances the heatsink fins heat transfer and improves durability.
The cooler is RoHS and WEEE conform and carries a 5 year warranty.
