Noctua NH-L9x65 65mm Low Profile CPU Cooler

£40.00
(£48.00 inc VAT)
Short description:

Intel - 1150, 1151, 1155, 1156, 2011, 1200

AMD - AM2, AM3, FM1, FM2

26125
1
+ −
Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

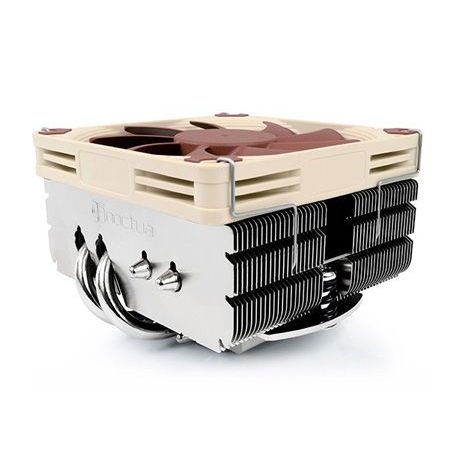

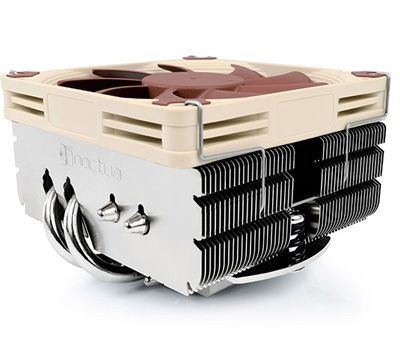

The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which guarantees 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2™ multi-socket mounting system for Intel and AMD, Noctua’s renowned NT-H1 thermal compound and 6 years manufacturer’s warranty, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.



Overall Dimensions W D H
95mm 95mm 65mm inc Fan
Weight 413g with fan
Heatsink Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Dissipation Area
Mounting Type Backplate / Bolt thru design
CPU Sockets Intel Socket 2011, 115x, 775, 1200 AMD AM2, AM3, FM1, FM2
Fan Size 1 x 92mm x 14mm
Fan rpm 600 - 2500rpm Max 1800rpm with LNA
Fan Noise Max 23.6 ±1 dBA Max 14.8 ±1 dBA (with LNA)
Fan Airflow Up to 57,5 m³/h Up to 40.8 m³/h with LNA
Fan Connector 4pin PWM
Thermal Grease Includes NT-H1 Thermal Paste



Caution: The NH-L9x65 is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 84W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9x65 is recommended for your CPU.



Details

65mm low profile

65mm low profile

Due to its compact heatsink and the 14mm thin NF-A9x14 low profile fan, the NH-L9x65 stands only 65mm tall (the same height as low-profile expansion cards), which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer limited clearance for CPU coolers.

100% RAM compatibility on Intel platforms

100% RAM compatibility on Intel platforms

The NH-L9x65 has a 95x95mm footprint that complies exactly to the Intel LGA115x socket keep-out zone. This means that it won't cause issues with chipset coolers and doesn't overhang the RAM slots, making it fully compatible with tall memory modules.

100% compatibility with PCIe cards on ITX

100% compatibility with PCIe cards on ITX

Many Intel LGA115x based mini-ITX mainboards have the PCIe slot sitting close to the 95x95mm socket zone. While larger coolers that exceed this zone may block the PCIe slot, the 95x95xmm sized NH-L9x65 provides full compatibility with PCIe cards.

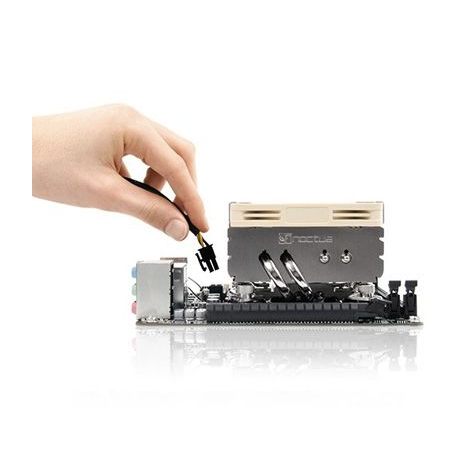

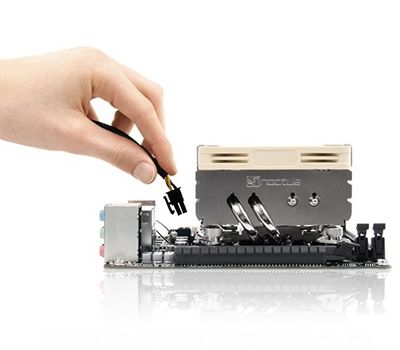

Easy access to near-socket connectors

Easy access to near-socket connectors

Many low-profile coolers use larger fans or heatsinks in order to achieve sufficient cooling performance, but protruding over the socket zone, they make it difficult or even impossible to reach near-socket connectors on tightly packed ITX mainboards. Thanks to its 95x95mm footprint, the NH-L9x65 provides easy access to all connectors and components.

NF-A9x14 PWM premium fan

NF-A9x14 PWM premium fan

The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9x65 to stay remarkably quiet.

Low-Noise Adaptor

Low-Noise Adaptor

Allowing to reduce the maximum speed of the NF-A9x14 fan from 2500 to 1800rpm, the included (L.N.A.) makes it possible to achieve near-silent setups using CPUs with up to 65W TDP.

SecuFirm2™ mounting system

SecuFirm2™ mounting system

Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011 and AMD (AM3(+), AM2(+), FM1, FM2(+)), the SecuFirm2™ mounting included with the NH-L9x65 guarantees perfect contact pressure and maximum convenience on all current sockets.

Compatibility with past and future sockets

Compatibility with past and future sockets

Complying with the open SecuFirm™ standard, the NH-L9x65 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.

6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9x14 features an MTBF rating of more than 150.000 hours and the entire NH-L9x65 package comes with a full 6-year manufacturer’s warranty.
GTIN:
4716123315629
MPN:
NH-L9x65

CPU Coolers

CPU Cooler Colour:
Silver
CPU Cooler Fan Quantity:
1
CPU Cooler Fan Size:
92mm
CPU Cooler Height:
65mm
CPU Cooler Lighting:
None
CPU Cooler Socket:
  • AMD AM2/3+ FM1/2+
  • Intel LGA115x
  • Intel LGA1200
  • Intel LGA2011 / 2066
CPU Cooler Style:
Horizontal
