Please note - we're not able to advise the size / thickness needed on thermal pads for your graphics card or laptop - either dismantle the product and measure to confirm what's needed, or the answer may sometimes be available on a web search if someone else has documented their own project. Thanks for your understanding!

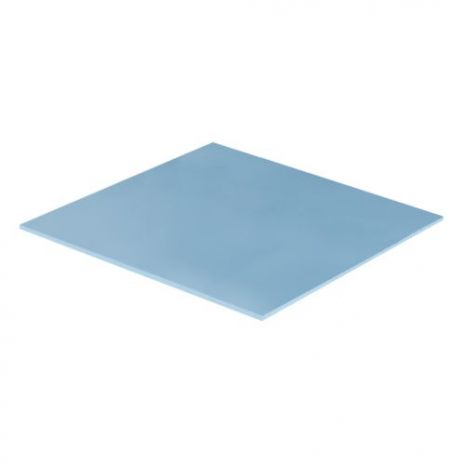

Based on silicone and a special filler, TP-3 outperforms high-performance pads, especially when height differences of closely spaced chips typically occur due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite extremely low hardness.
Minimization of Thermal Resistance
Minimization of Thermal Resistance
The thinner the pad, the lower the thermal resistance. The TP-3 pad with a thickness of 0.5 mm can easily be compressed to 0.3 mm and thus compensate for height differences between various components of up to 0.2 mm. Please note that due to the extremely low hardness, the installation of the 0.5 mm pad requires extra care. Please refer to the user manual.
Versatile Applications
Versatile Applications
Heat-conducting, vibration-damping, mouldable, electrically insulating — safe and easy to use. Thanks to its good compression properties, the soft heat conduction pad is particularly gentle on components and at the same time a good heat conductor. In addition to the standard format for M.2, the TP-3 is available in various sizes and thicknesses, which can be easily cut to the desired shape and size. This makes it ideal for RAMs, chipsets, and ICs of all kinds, which are used in PCs, laptops, consoles, graphics cards, and electronic devices in general.
Safe Handling
Safe Handling
The ARCTIC TP-3 is electrically insulating, non-adhesive, and easy to handle. This means that optimal and safe heat transfer can be ensured in many application areas.
Bridging Gaps
Bridging Gaps
The TP-3 is softer than conventional pads and therefore particularly suitable for different chip heights and possible tolerances. Thanks to their good compressibility properties, the thermal pads act as the perfect gap filler and bridge uneven surface and air gaps without stressing sensitive and protruding components.
Colour
Blue
Dimensions
100 x 100 mm
Pad Thickness:
1.5 mm
Hardness
55 Shore OO
Continuous Use Temperature
-40~150 °C
Specific Gravity
3.4 g/cm3
Dielectric Constant (1MHz)
5.19
Flammability Rating
UL 94 V-0
Installation
GTIN:
4895213703963
MPN:
ACTPD00053A
New features
Manufacturer:
Arctic
