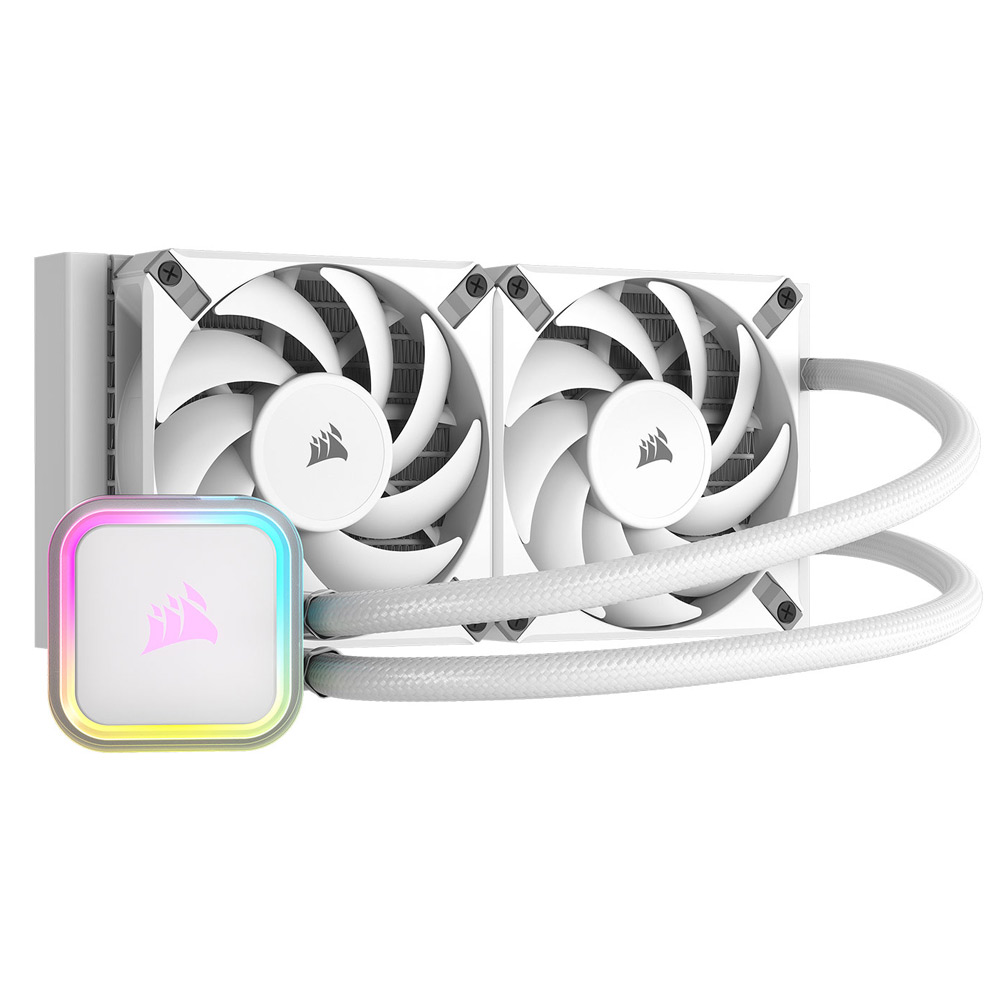

The CORSAIR iCUE H100i RGB ELITE Series liquid CPU coolers offer first-class CPU cooling, integrated RGB lighting, and refined aesthetics, equipped with CORSAIR AF ELITE Series PWM fans that deliver powerful airflow and specialized low-noise cooling modes.
Dynamic Lighting and Style

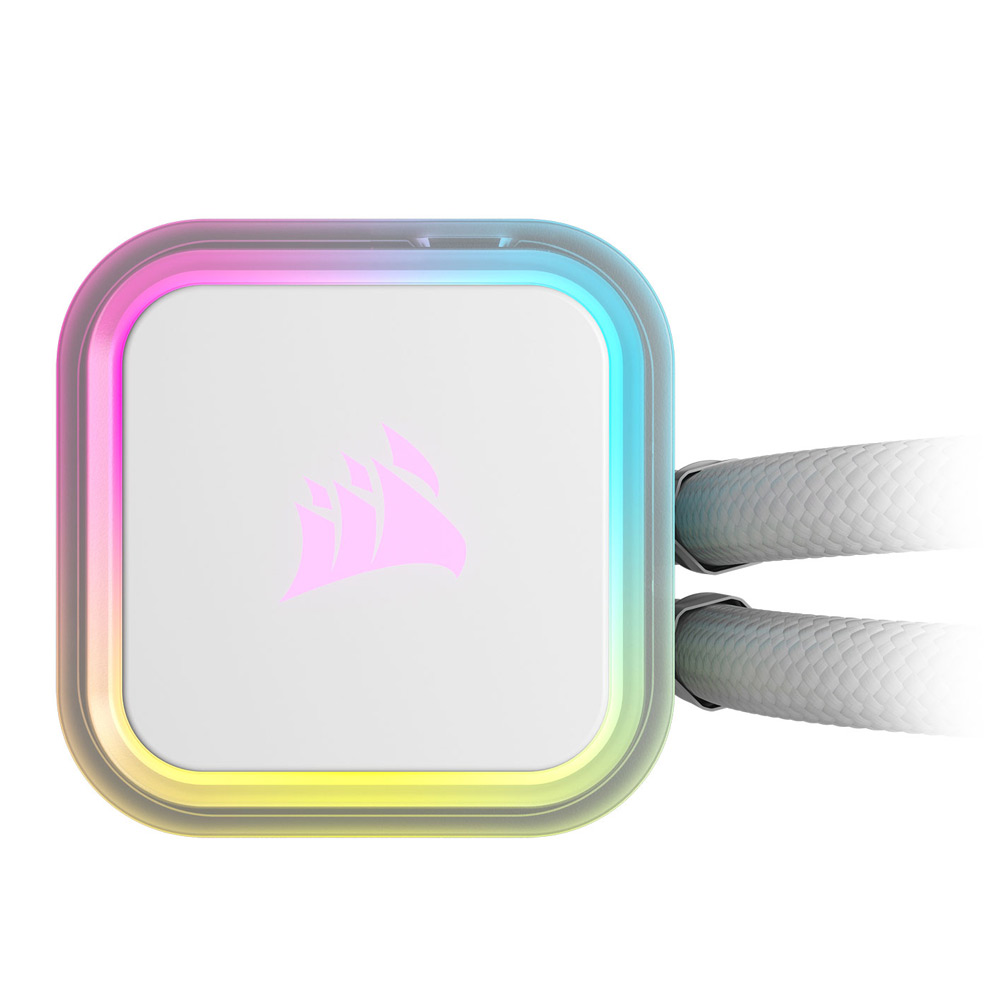

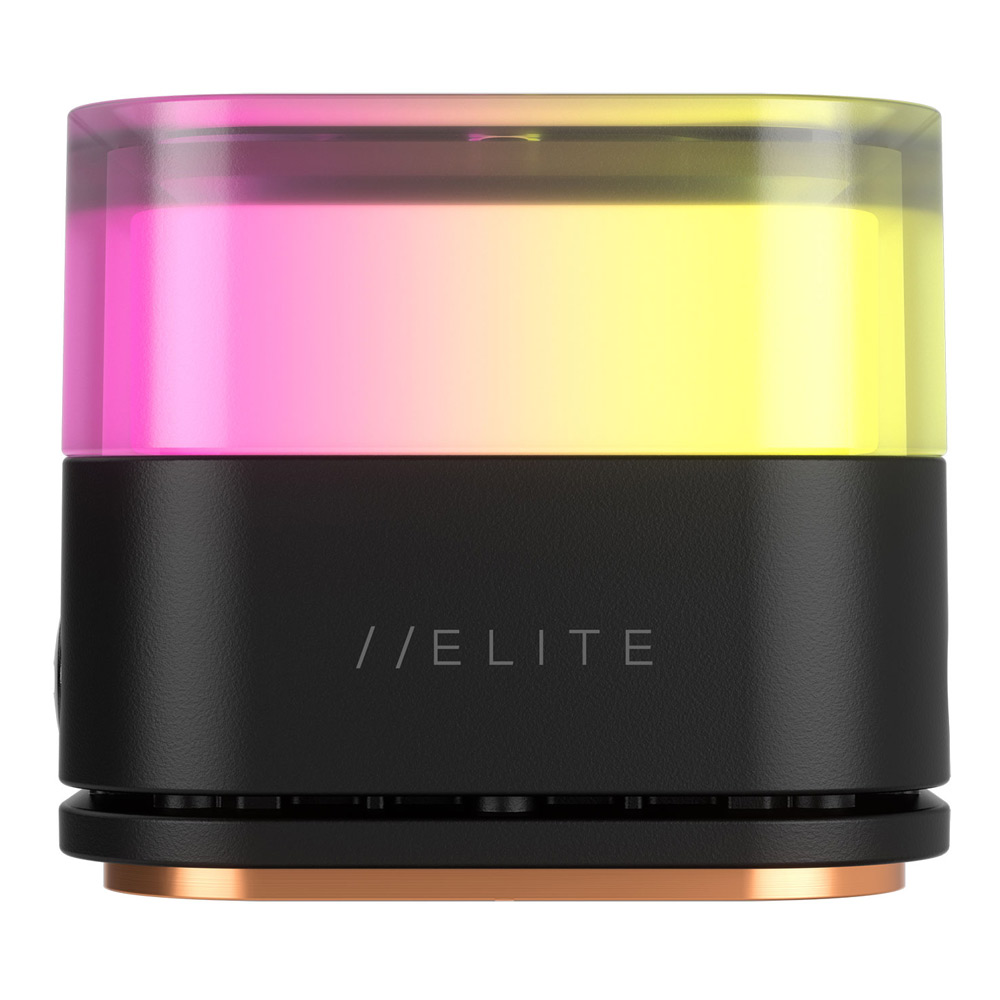

With 16 RGB LEDs on a modern pump head design, the ELITE series deliver great cooling with the looks to match.
Produce stunning, customizable lighting effects using CORSAIR iCUE software to add vivid colors and style to your system.
Your Setup at Your Command
Adjust fan and pump speeds, control and synchronize your cooler's RGB lighting with all iCUE-compatible devices, and monitor CPU and coolant temperatures, all from a single intuitive interface.
Outperform the Competition
Elevate your CPU performance with all-in-one liquid cooling driven by CORSAIR AF ELITE Series fans with AirGuide technology.
Specialized Cooling Modes
Zero RPM and Variable Pump Speed specialized cooling modes in iCUE keep noise to a minimum when your system is idle or under light loads.
High-Performance Pump and Cold Plate

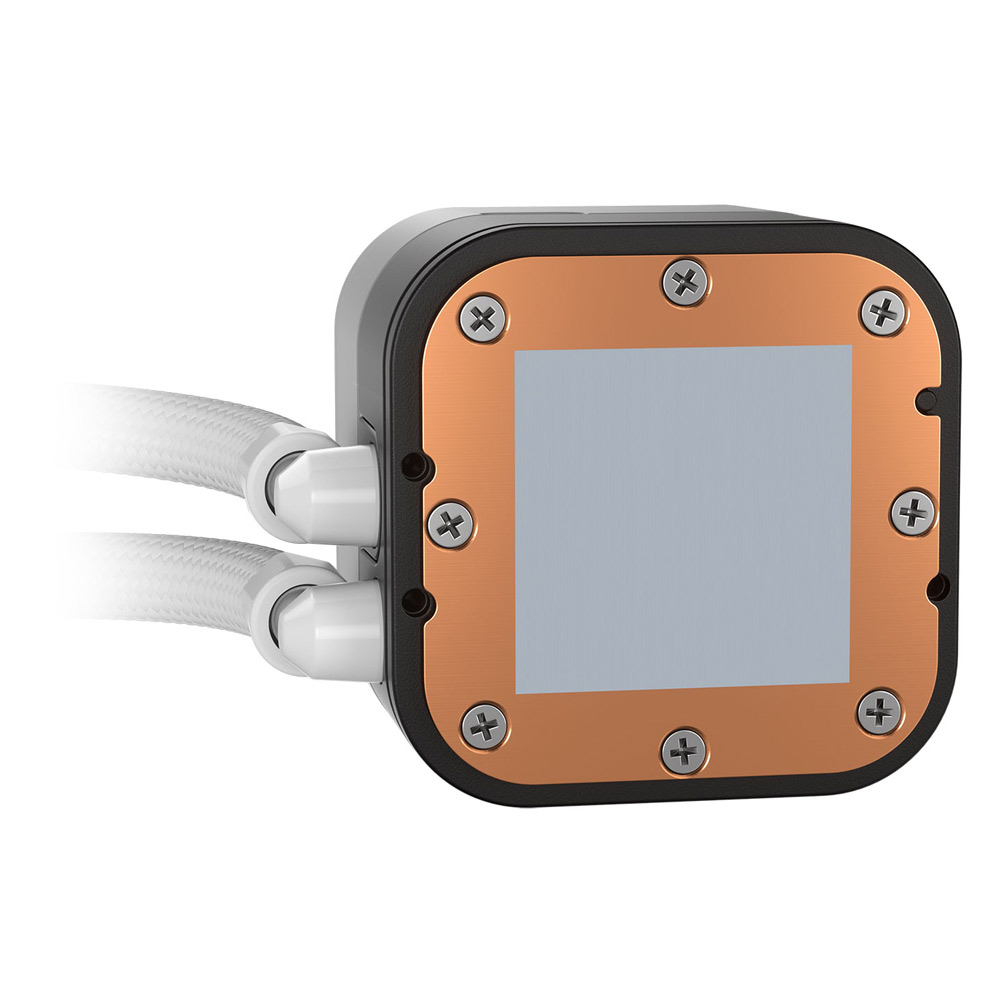

Equipped with a thermally optimized copper cold plate and pre-applied thermal compound, the low-noise pump design delivers high-performance, quiet cooling.
Effortless Installation
With tool-free mounting bracket, convenient USB Type-C port connection, and wide compatibility for the latest Intel® and AMD motherboard sockets, the Elite Series AIO coolers are designed for a quick and painless installation.
Unite Your Setup
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.
Specifications
General
|
Radiator Size 240mm |
Lighting 16 RGB LEDs on pump head (fans are plain white only) |
PWM Yes |
Cooling Warranty 5-years |
Compatibility
|
Intel Processors Supported Core i9, i7, i5, i3, Pentium, Celeron |
AMD Processors Supported Ryzen Threadripper, Ryzen, Phenom II, Athlon II, FX, A-Series, Opteron, Sempron, Athlon 64 |
Cooling Socket Support Intel 1200, 1150, 1151, 1155, 1156, 1366, 1700, 2011, 2066 AMD AM4, AM5, sTR4 |
CORSAIR iCUE Compatibility Yes |
Fan Details
|
Fan Model AF ELITE |
Fan Control Method PWM |
Fan Dimensions 120mm x 25mm |
Fan Quantity 2 |
Fan Speed 400 -18050 RPM |
Fan Noise Level 5 - 28.9 dBA |
Fan Airflow 10.9 - 59.1 CFM |
Fan Static Pressure 0.09 - 1.93 mm-H2O |
Dimensions / Materials
|
Cold Plate Material Copper |
Cold Plate Dimensions 56 x 56mm |
Radiator Material Aluminium |
Radiator Dimensions 277mm x 120mm x 27mm (DxWxH) |
Tubing Material White Sleeved Low-Permeation Rubber |
Tubing Length 400mm |
Find the full list of features at www.corsair.com.
