All-in-one liquid coolers don't dissipate processor heat inside the case like traditional air coolers, but instead guide it to the edge of the case and blow it out with dedicated fans. This results in cooler components and less noise. The ELITE CAPELLIX XT is an upgrade to our most powerful CPU cooler:

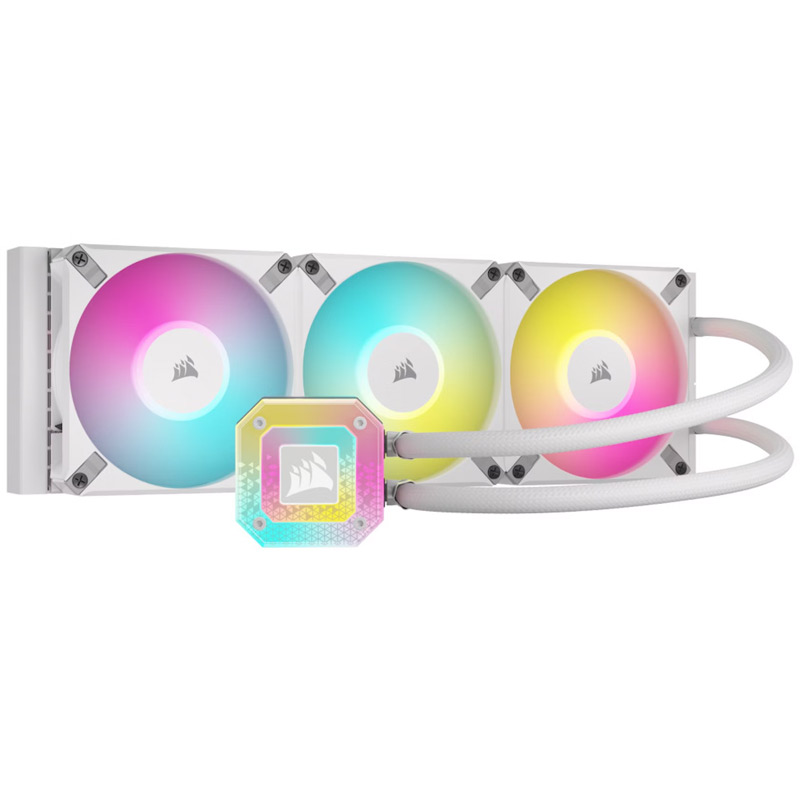

CORSAIR AF RGB ELITE PWM fans deliver massive low-noise airflow with AirGuide technology for extreme CPU cooling performance.
Anti-vortex vanes ensure more uniform airflow over radiator fins and more optimal heat dissipation.
All ELITE CAPELLIX XT AIOs include pre-applied CORSAIR XTM70 Extreme Performance thermal paste for maximum heat transfer from your high-end processor to the cooler cold plate.
For reliably high cooling performance, every step in the heat transfer and dissipation chain matters.

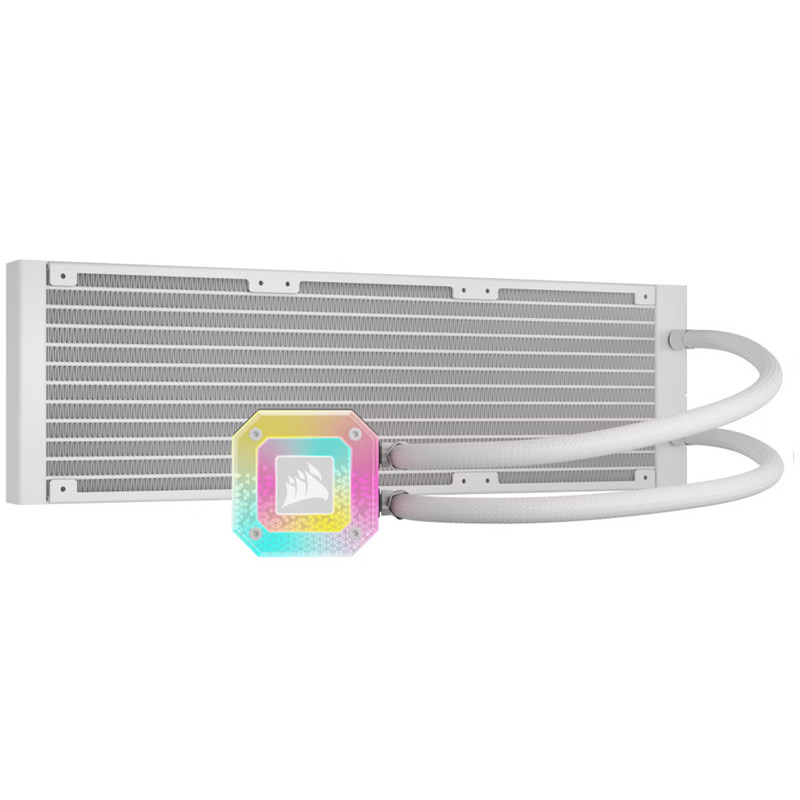

The ELITE CAPELLIX XT cooler pump head houses 33 ultra-bright CAPELLIX LEDs to go along with its RGB fans. When you add powerful, low-noise cooling to the mix, your system will look great and will run even better.
Reduce fan noise to a minimum. When your computer doesn’t need active cooling, Zero RPM cooling profiles in CORSAIR iCUE software allow fans to stop entirely.
When you want to take it to the next level, you can upgrade your CPU cooler by swapping the original pump cap with the ELITE LCD Upgrade Kit.
An included iCUE COMMANDER CORE RGB lighting and fan speed controller gives you precise speed and lighting control over up to six CORSAIR RGB fans.

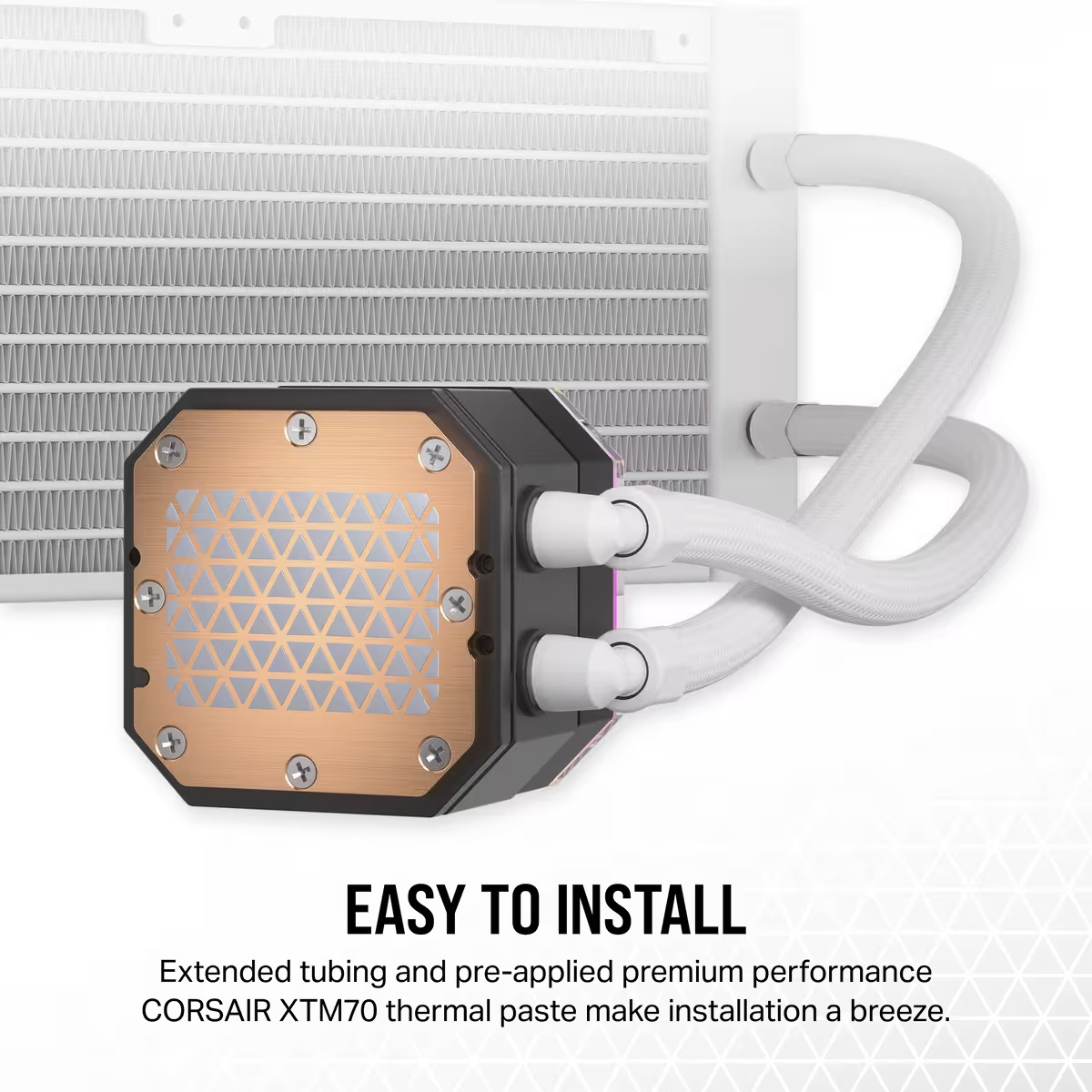

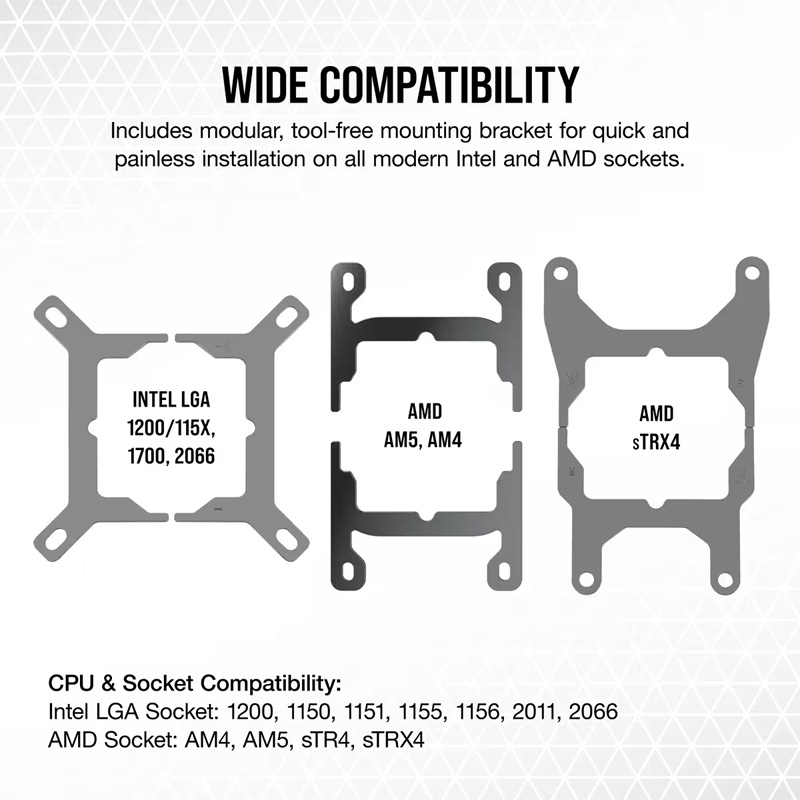

Extended tubing length of 400mm (H100i, H115i) / 450mm (H150i, H170i), modular tool-free mounting brackets, and pre-applied XTM70 thermal paste make for easy installation on the latest Intel® and AMD® motherboard sockets, including LGA 115X, 1200, 1700, 2011, and 2066, plus AMD Socket AM4, AM5, and sTRX4/sTR4.
General |
Radiator Size 360mm |
Lighting RGB |
---|---|---|
PWM Yes |
Cooling Warranty 5-years |
|
Compatibility |
Cooling Socket Support Intel 1700, 1200, 1150, 1151, 1155, 1156, 2011, 2066 AMD AM4, AM5, , sTRX4, sTR4 |
CORSAIR iCUE Compatibility Yes |
Fan Details |
Fan Model AF120 120mm RGB ELITE Fans |
Fan Control Method PWM |
Fan Dimensions 120mm x 25mm |
Fan Quantity 3 |
|
Fan Speed 550 - 2,100 RPM |
Fan Noise Level 5 - 34.1 dBA |
|
Fan Airflow 13.8 - 65.57 CFM |
Fan Static Pressure 4.2 mm-H2O |
|
Dimensions / Materials |
Cold Plate Material Copper |
Cold Plate Dimensions 56 x 56mm |
Radiator Material Aluminium |
Radiator Dimensions 397mm x 120mm x 27mm (DxWxH) |
|
Tubing Material White Sleeved Low-Permeation Rubber |
Tubing Length 400mm |
Find the full list of features at www.corsair.com.
