- 3 interchangeable pump looks that can be customized with L-Connect 3
- Factory installed with ARGB daisy-chainable radiator fans or UNI FAN SL-INF
- Pump motor speed goes up to 3200RPM
- Includes a newly designed copper plate and creates straightened Liquid coolant pathway
- 45-degree tubing connector with tubes’ inner diameter increased to 7mm
EXTREME COOLING
3 TYPES OF PUMP COVER
45° ROTARY FITTINGS
PRE-INSTALLED DESIGN
SINGLE STACK FIN RADIATOR
ARGB FAN
L-CONNECT 3 CONTROL
5 YEARS WARRANTY
With UNI FAN SL-INF
Easily match the AIO fans to your case fans with this visually stunning option
Note:
The UNI FAN SL-INF controller included in Galahad II Trinity SL-INF version allows expansion of UNI FAN SL-INF single pack (no triple pack) by using included 5V 3pin cables.
IMPROVED DESIGNS, IMPROVED PERFORMANCE
Compared to the Galahad AIO, the Galahad ll Trinity series shows significant improvement in cooling performance thanks to the many design changes that were introduced.
Coolant Pathway
Staightened To reduce waterflow Resistance
To prevent substance buildup over time.
To increase waterflow for faster heat dissipation.
Copper plate seal with straightened coolant pathway, reducing resistance

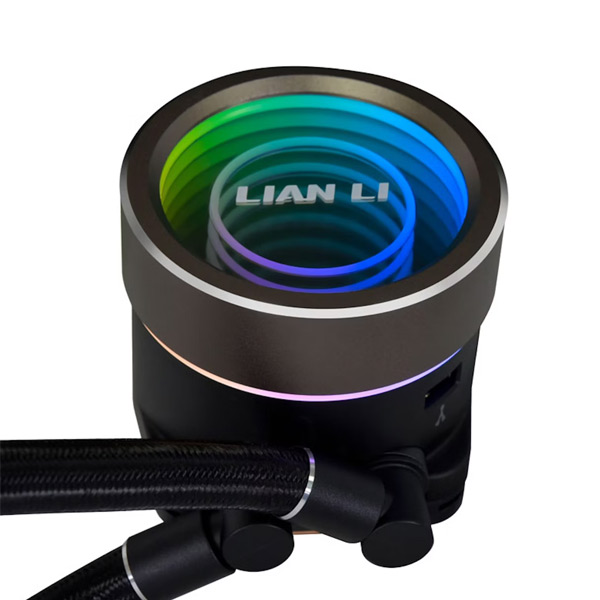

CHOOSE PREFERABLE LOOK
The Galahad II Trinity series’ pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects.
DUO- INFINITY
An aluminum housing cap with duo infinity mirror rings and a Lian Li logo at the center.
DAZZLE
An entirely shining pump cap that brings the most vivid lighting to your build.
SINK-HOLE
The combination of diffuser and infinity mirror creates the sinkhole effect.
HIGH DENSITY ALUMINUM RADIATOR
This 27mm thick radiator features single-wave radiator fins with 20 FPI (fins per inch), which is less airflow restrictive and can result in greater thermal performance.
DAISY-CHAINABLE ARGB FAN
The ARGB PWM fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. The 120mm fan is 25mm thick and is equipped with fluid dynamic bearings for stable and quiet operations while effectively providing airflow to the radiator.
Maximum Static Pressure
3.26 mmH2O
Maximum Airflow
79.9 CFM
MOUNT IN ANY WAY
This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways.
The Galahad ll Trinity series can be flexibly installed in ways such as:
Top Mount
Side Mount
Front Mount
Note: Do not apply heavy pressure or strike on the connector.
To make things even better, it also comes with a leather strap to help with organizing the tubes.
INSTALATION MADE EASY, FOR YOU
The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.
It also comes with a thermal paste control film and spreader to help ensure the right amount of thermal paste is applied for effective heat dissipation.
SEAMLESS SOFTWARE
Control and preview with precision the lighting effect and real time motor speed of the Galahad II Trinity Pump and fans with the L-Connect 3.
➊ Preview of pump header status and lighting effects
➋ Apply the fan and pump speed
➌ Set personalized lighting effects
Control connected ARGB device lighting effects
Set and monitor fan and pump speed with a real time curve
SIMPLE CONNECTION
The controller is built in the pump and the fan can be connected to the pump to control via L-Connect 3.
ARGB and fan extension input cable
Connect an ARGB device or fan for control via L-Connect 3
5V ARGB
Required for motherboard sync
(No need to use if only using L-Connect)
SATA Cable
For power
USB Cable
Plug into a motherboard 9-pin USB header for L-Connect 3 support
4-PIN PWM Cable
Required for RPM control
5 YEAR WARRANTY
Built with quality, the Galahad II Trinity AIO is proudly backed by a 5-year warranty, including the fans and controller. Damage of other components from leakage will be backed up to 3 years after we closely inspect the cause of leakage.
USER MANUAL DOWNLOAD
| PRODUCT NAME | GA II TRINITY SL-INF | |
|---|---|---|
| MODEL | GA2T36INB BLACK | |
| COLOR | Black | |
| TYPE | 360mm | |
| PUMP SPEED | 3200 RPM | |
| RADIATOR FINS | Single wave | |
| RADIATOR SIZE | 397.5mm x 119.2mm x 27mm | 277.5mm x 119.2mm x 27mm |
| PUMP SIZE | 74mm x 74mm x 69mm | |
| INCLUDED PUMP BLOCK CAPS | Dazzle Mode, Sink Hole, Duo-Infinity | |
| TUBE LENGTH | 385mm | |
| PUMP NOISE | 16.59 dBA | |
| FAN SIZE | 120mm x 120mm x 25mm | |
| FAN SPEED | 2100 RPM (Max.) | |
| STATIC PRESSURE | 2.66mmH2O (Max.) | |
| AIRFLOW | 61.3CFM (Max.) | |
| ACOUSTIC NOISE | 29 dB(A) | |
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |
| COMPATIBLE CPU SOCKETS | Intel: LGA 1700 / 1200 / 115x AMD: AM5 / AM4 |
|
| WARRANTY | 5 years | |
